¶ Configure the machine tool file
This tutorial offers a general guide for configuring the TwoTrees machine in Kiri.moto.
Important Notice：
The parameters in the tutorial should not be directly applied.
You must make targeted adjustments according to the specific model you are using.。

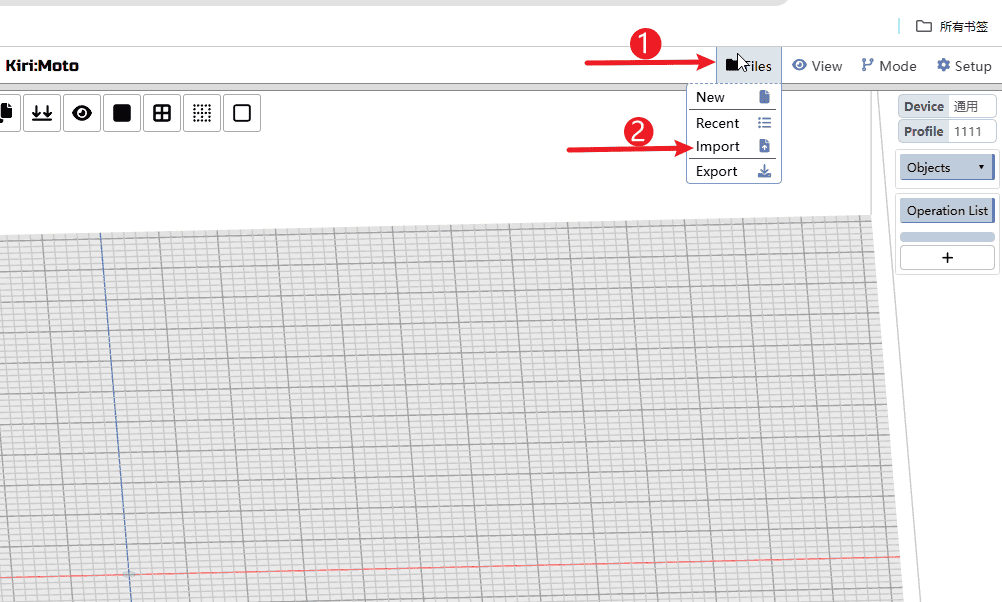

Step 1
Perform the operation according to the sequence numbers.
- 1.Click on the file to enter the sub-menu.
- 2.Click to import the new one
|

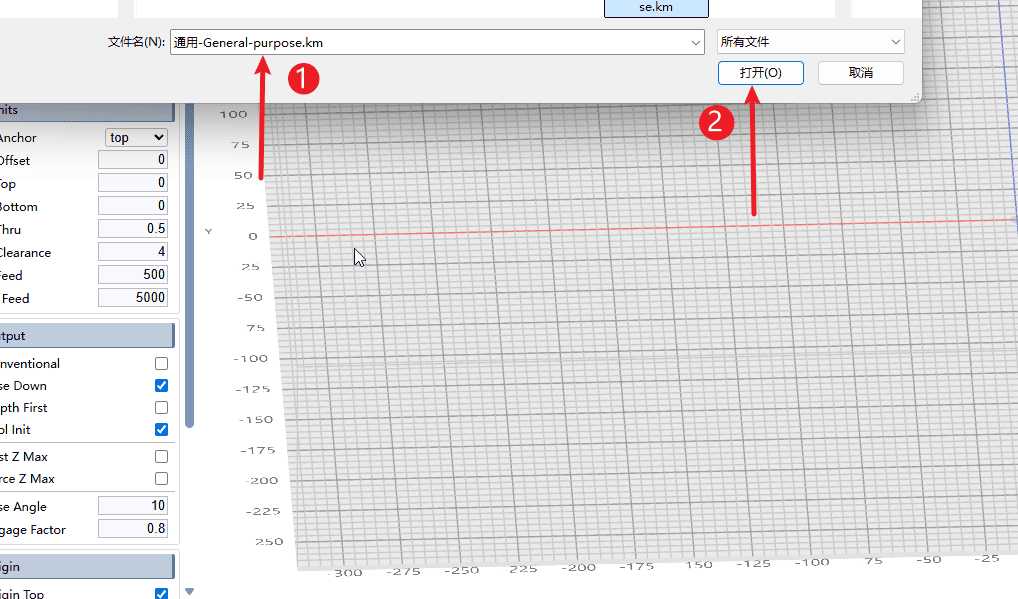

Step 2
Perform the operation according to the sequence numbers.
- 1.Select the file with the suffix “.km” that has been downloaded from the top of the webpage.
- 2.Click to open
|

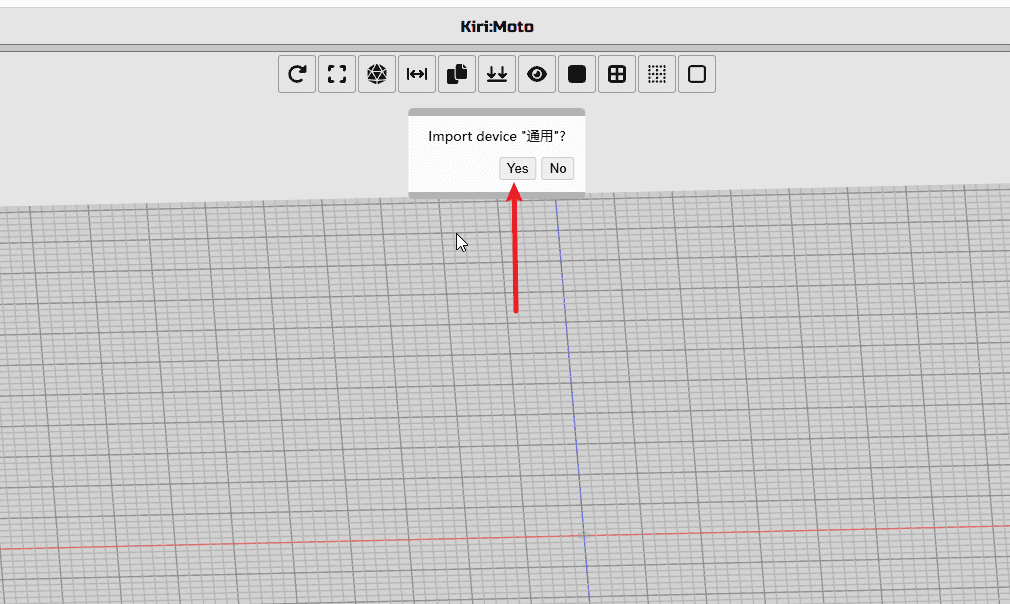

Step 3
Click “Yes” to confirm the import.
|

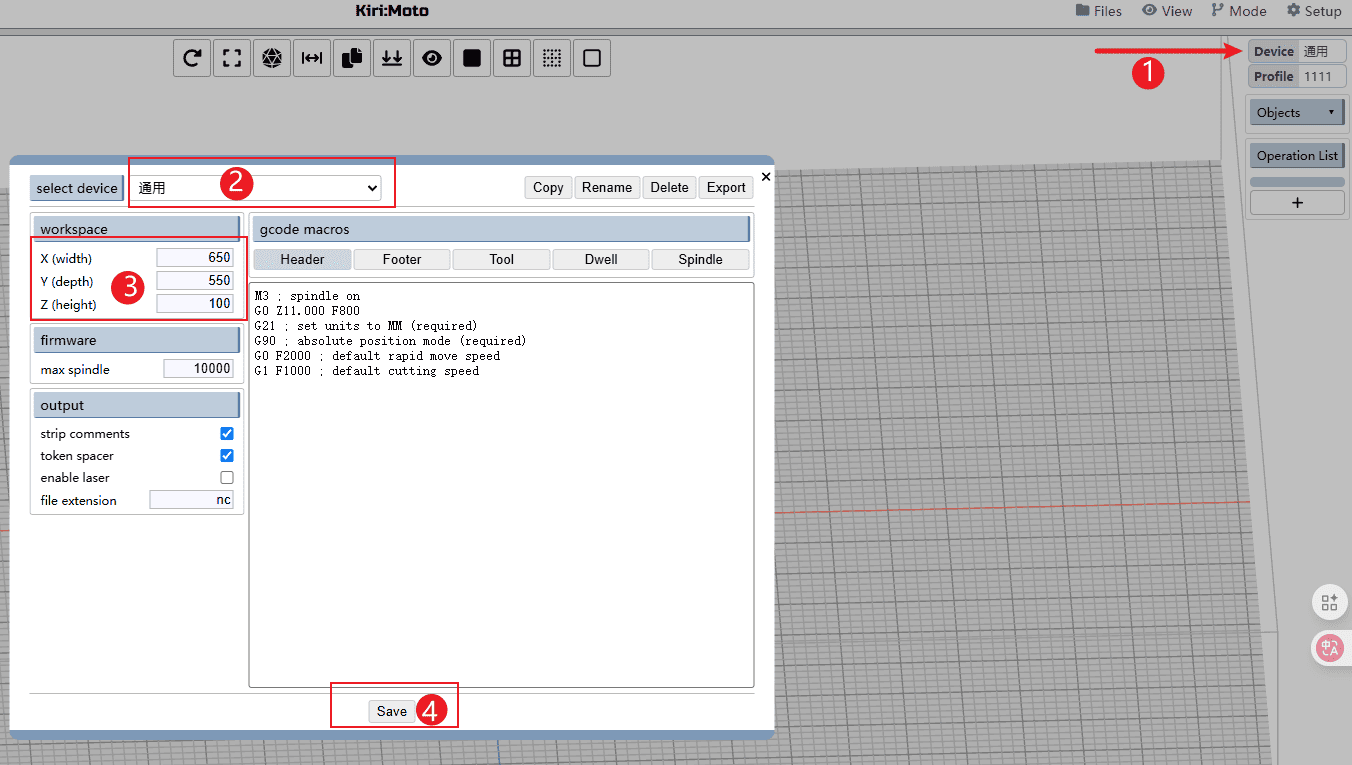

Step 4
Perform the operation according to the sequence numbers.
- 1.Click “Configuration”
- 2.Change the name to the name of your current machine.
- 3.Modify the machine dimensions to match the working dimensions of your existing machine.
- 4.Click “Save” to proceed.
|
