¶ Add tools
This tutorial explains the method of adding cutting tools in Kiri.moto.

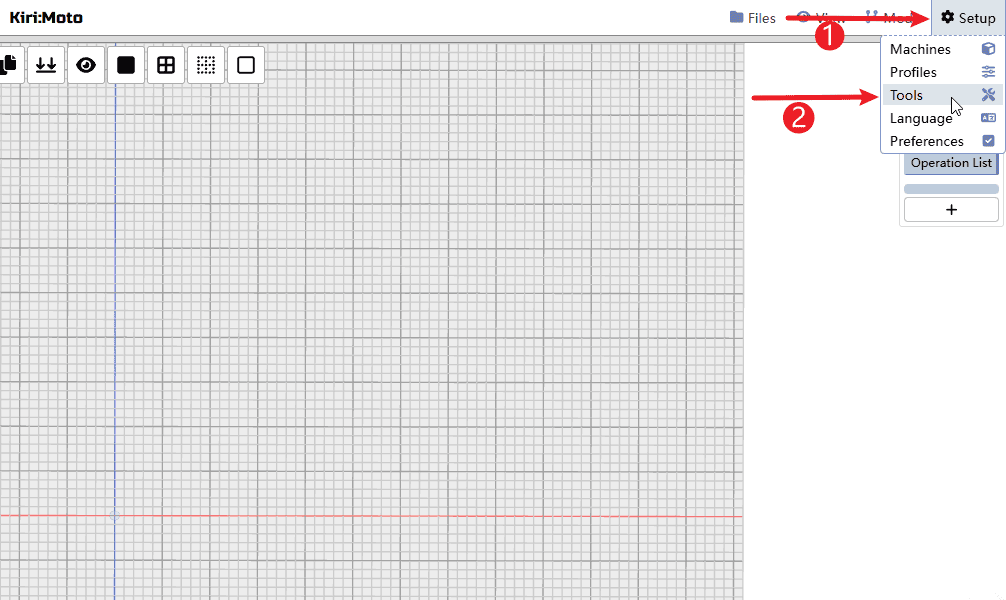

Step 1
Perform the operations according to the sequence numbers.
- 1.Click on “Settings” to enter the sub-menu.
- 2.Click the tool
|

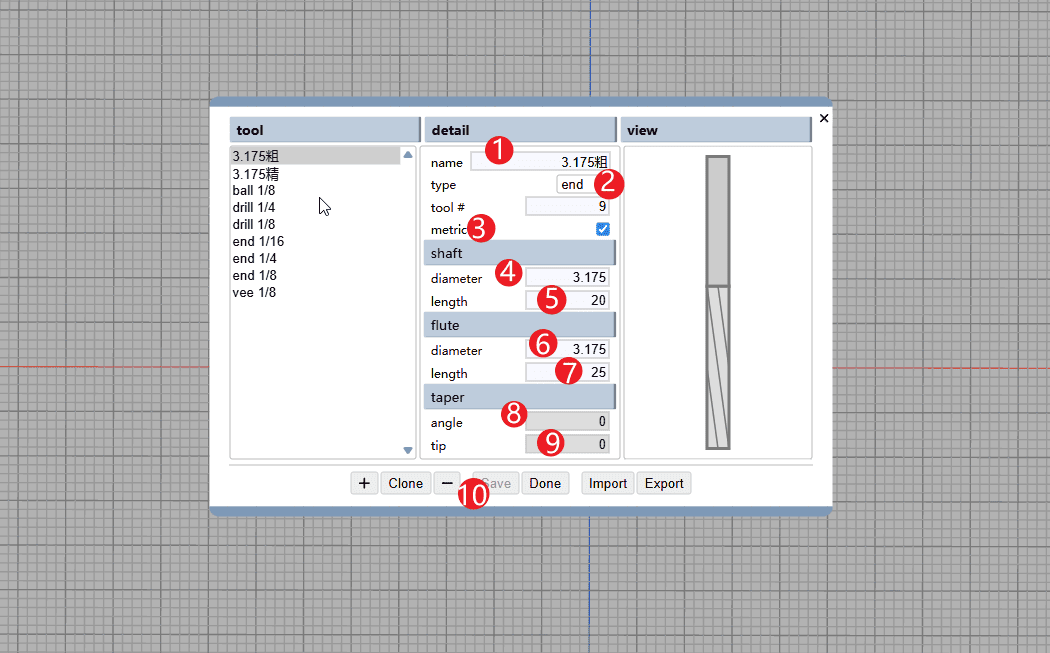

Step 2
Perform the operations according to the sequence numbers.
- 1.First, set the name for the tool.
- 2.Select the type of tool to be added
- 3.Check the “Metric (mm)” option
- 4.Set the diameter information of the tool handle
- 5.Set the length information of the knife handle
- 6.Set the diameter information of the cutting edge
- 7.Set the length information of the cutting edge
- 8.Set the angle of the cutting edge (for end mills, it is 0)
- 9.Set the bottom angle of the cutting edge (for end mills, it is 0)
- 10.Click “Save” to complete the step of adding the tool.
|
