¶ Post-import processor
This tutorial explains the methods for adding and configuring post-processors in Fusion 360. You can download the post-processors below.
twotrees（1）.cps

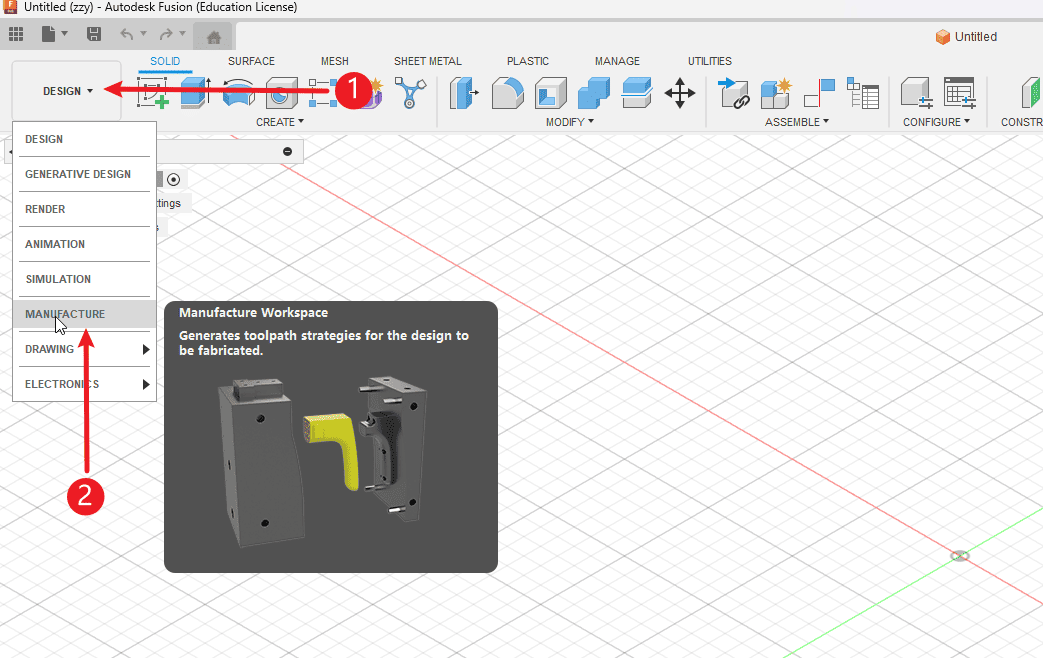

Step 1
Perform the operations according to the sequence numbers.
- 1.Click on the workbench
- 2.Switch to the CAM workbench
|

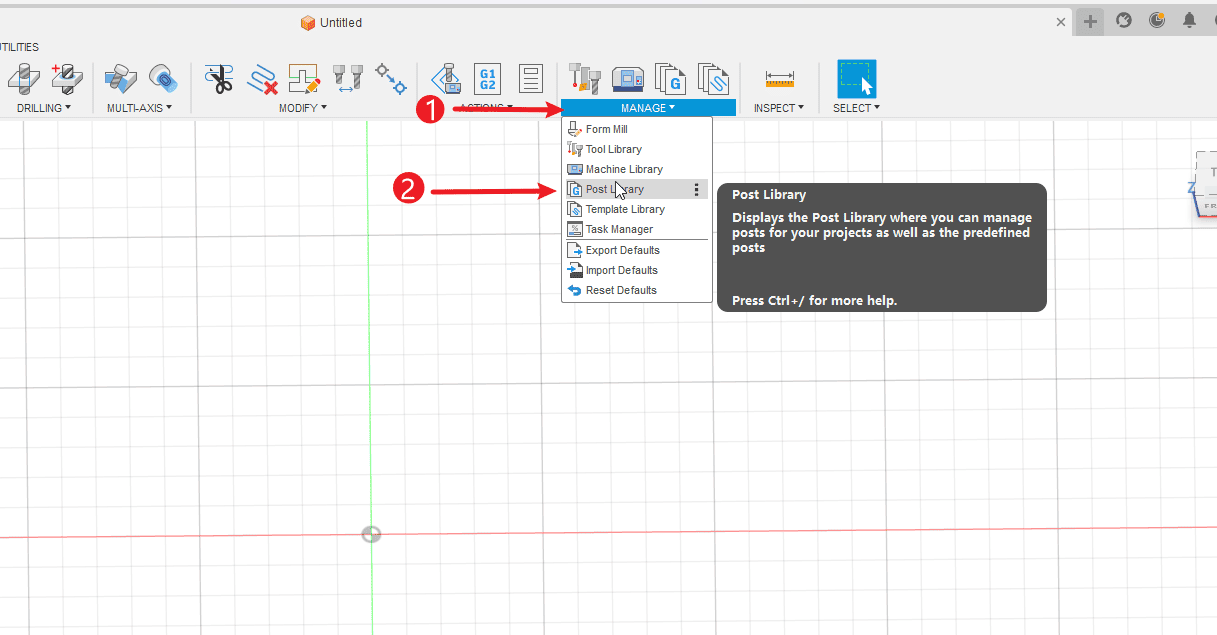

Step 2
Perform the operations according to the sequence numbers.
- 1.Click on “Manage Settings”
- 2.Click on the post-processing library
|

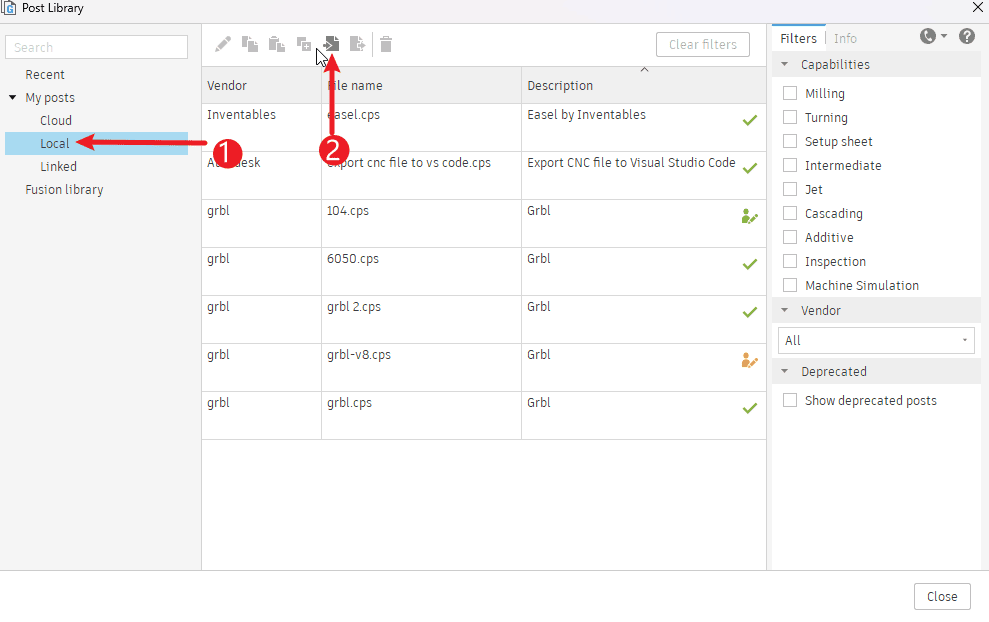

Step 3
Perform the operations according to the sequence numbers.
- 1.Click on the local folder
- 2.Click “Import”
|

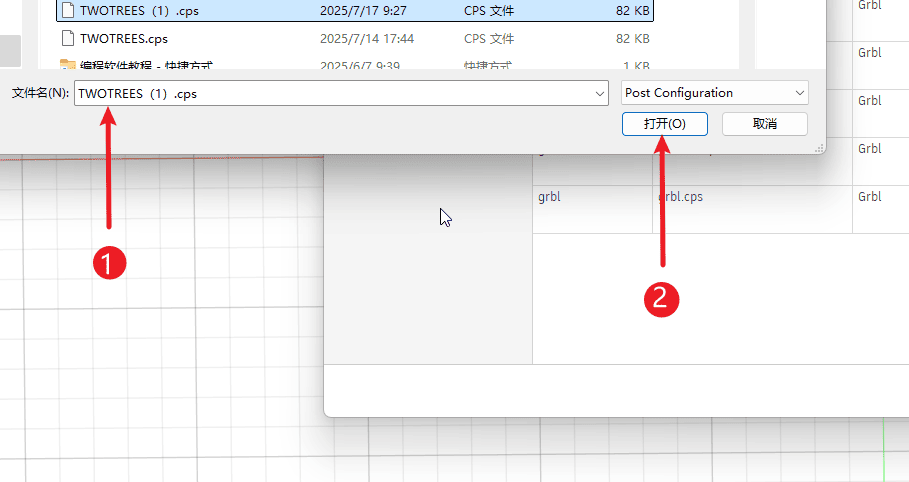

Step 4
Perform the operations according to the sequence numbers.
- 1.Click to select the post-processor that has been downloaded.
- 2.Click to open and it will be ready.
|
