This tutorial provides a detailed explanation of the complete process of connecting the Candle software to numerical control equipment, as well as the core function operation guidelines.

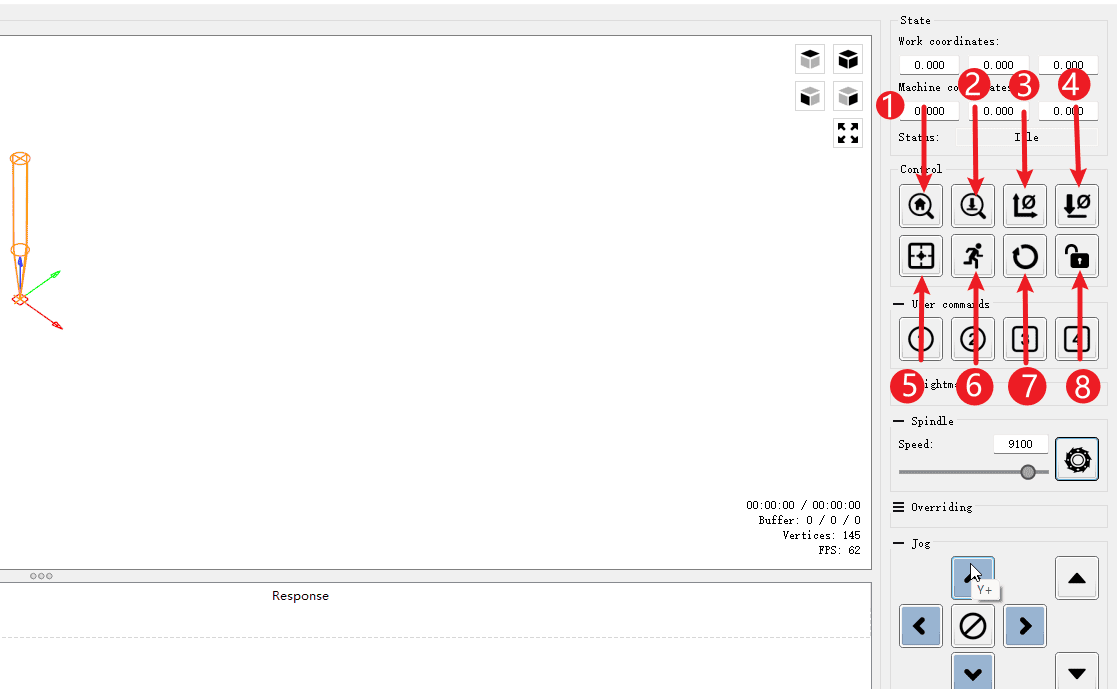

**1.“home key”**The function is to return the machine to its mechanical zero point (note: do not click for machines without limit switches)
2.ProbeFunction: Tool setting. After installing the tool setting block, clicking this button can calibrate the coordinates of the Z-axis (note: Do not click this button if the tool setting block is not installed to avoid damaging the machine).
3.XY resetThis function allows you to click to reset the X and Y coordinates to zero and set the current position as the work origin after the alignment is completed.
4.Z resetThis function allows for manual reset of the Z-axis coordinates. It can be used for manual alignment even when a tooling block is not in use.
5.Reset the starting pointCan quickly locate the starting point of the work
6.Safety altitudeThis function is generally not used and no action is required.
7.Reset operationYou can stop moving while in motion.
8.UnlockUsed to unlock the motor. After returning to zero position, click it to manually rotate the handwheel to move the shaft.
