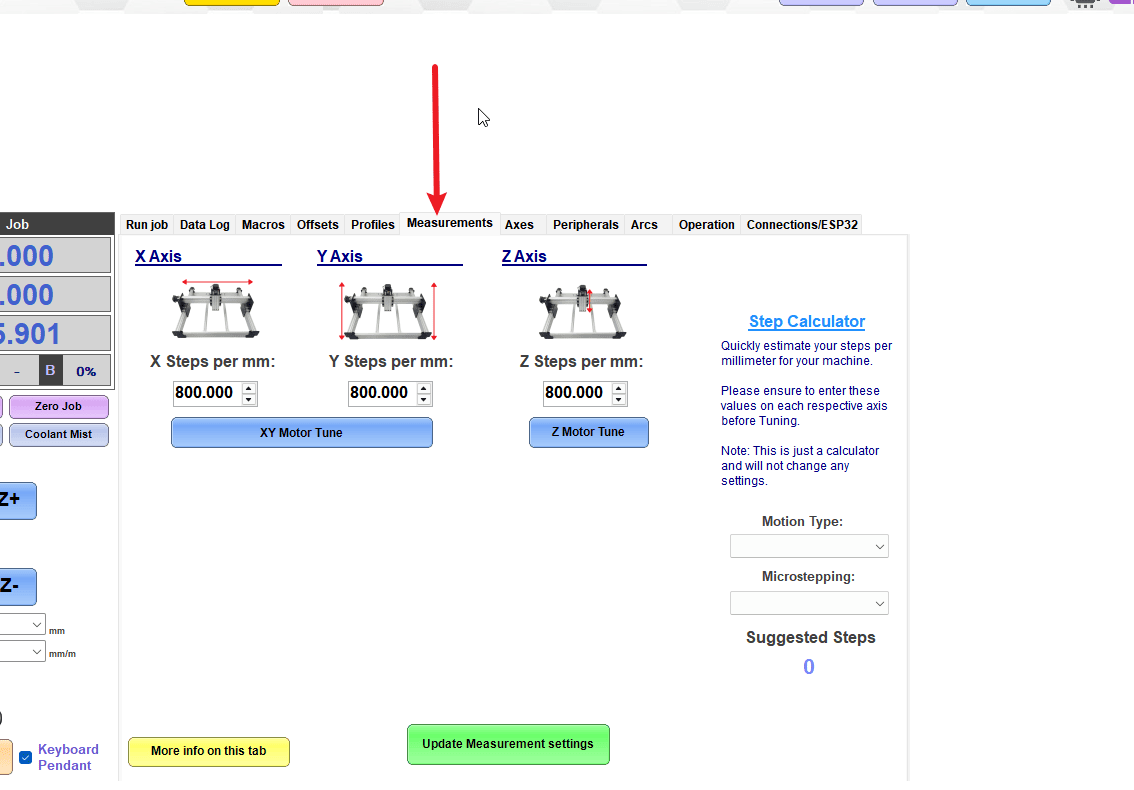

Step value setting: In most cases, this setting does not require any modification. If there is an issue with the movement distance, it can be adjusted here.
Setting 2

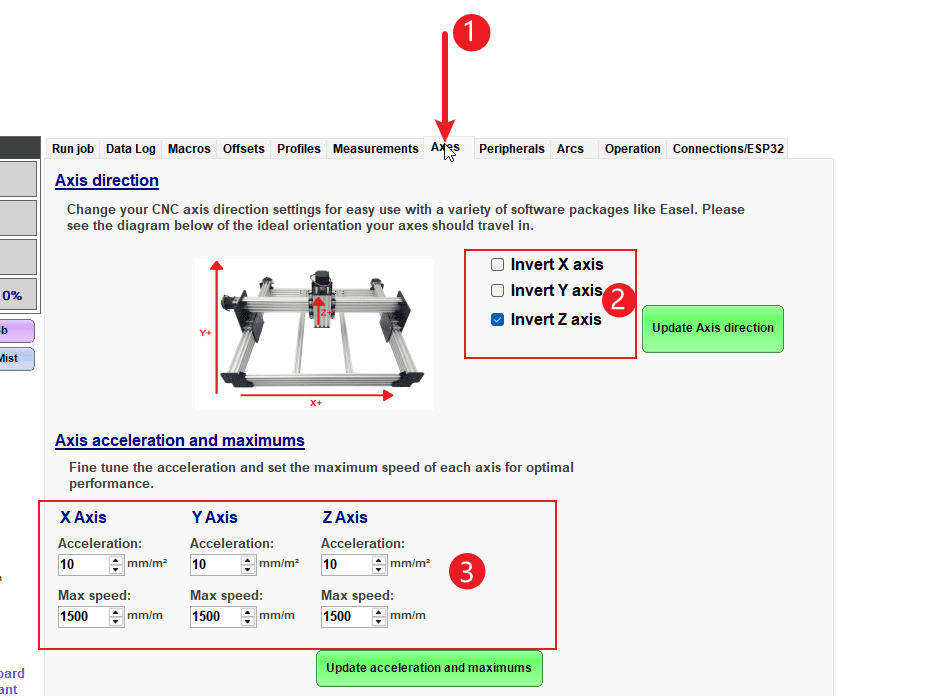

1.Motor settings
2.Motor direction setting (If the direction of any of the axes is reversed, it can be adjusted here)
3.Motor speed setting (allows setting of motor acceleration and maximum moving speed)
Setting 3

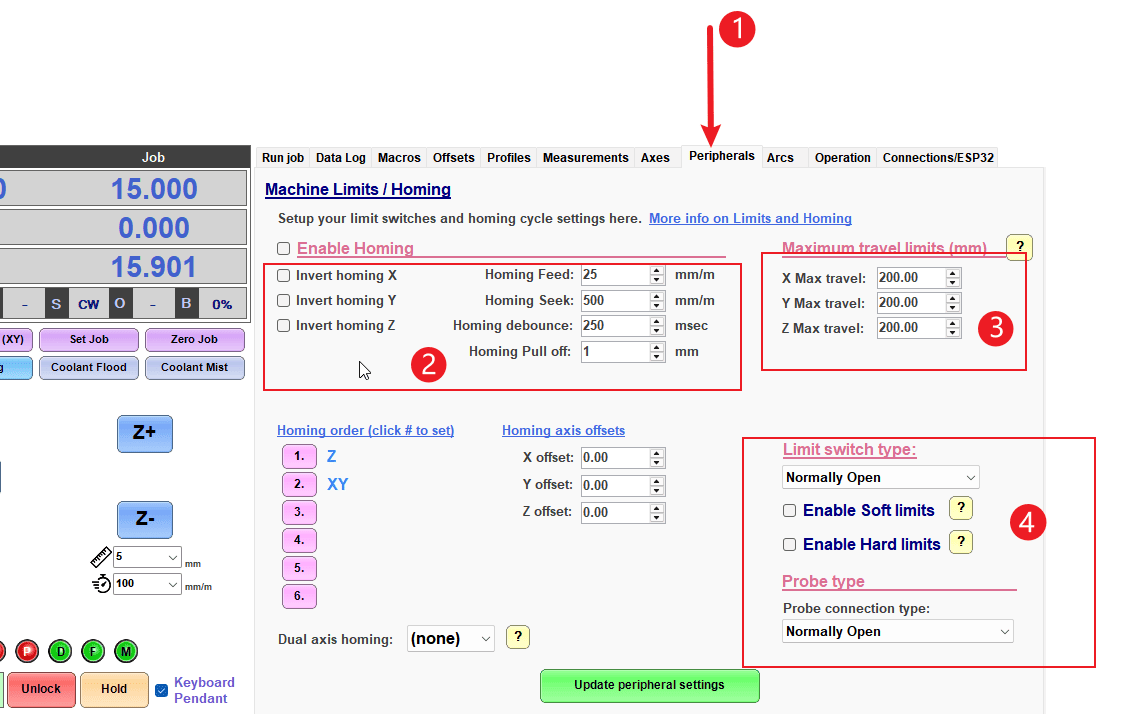

1.Size settings
2.Here, you can set the direction of zeroing movement and the speed of the zeroing machine.
3.This is the maximum stroke setting for the machine (please do not change it by default)
4.Limit switch settings: If the machine does not have a limit switch, you can enable the limit switch here if you want to add one. (Do not modify this by default to avoid machine collision.)
Set 4

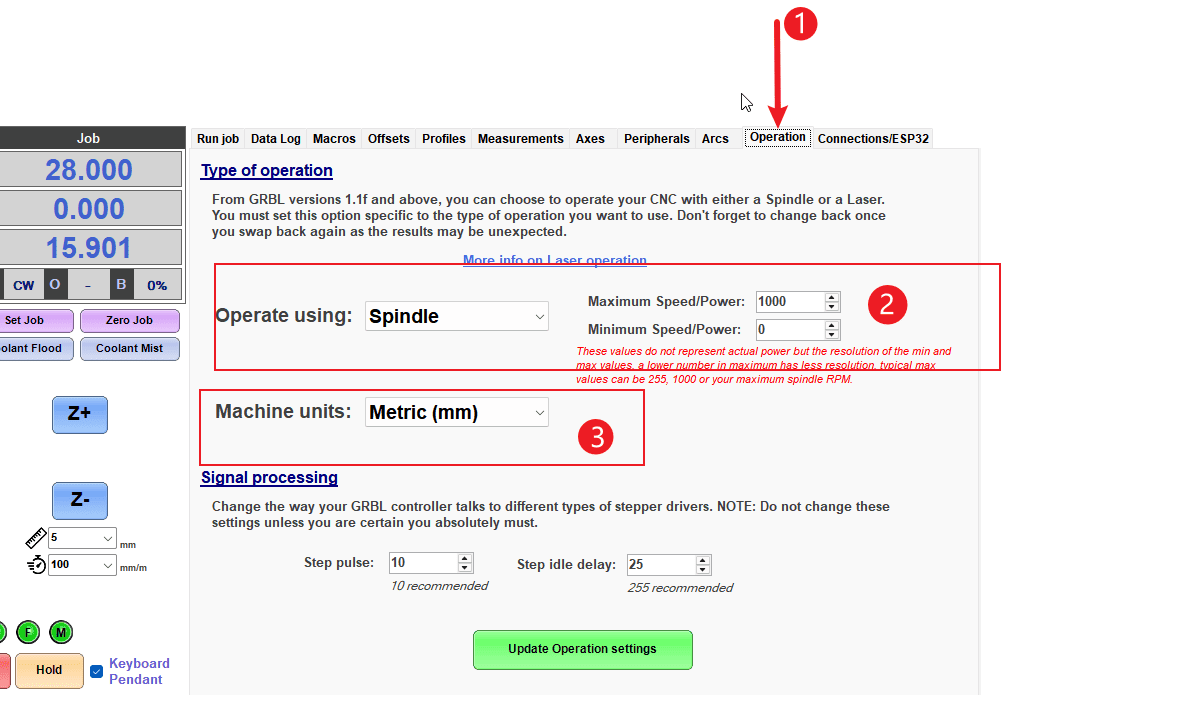

1.Operation Settings
2.Spindle setting: The default rotational speed is 10,000 rpm, which means full power operation.
3.Machine size unit can be switched between metric and inches according to your own preference.
