This tutorial explains how to carry out the engraving process after completing the preparatory work for the TS2-MAX series models.

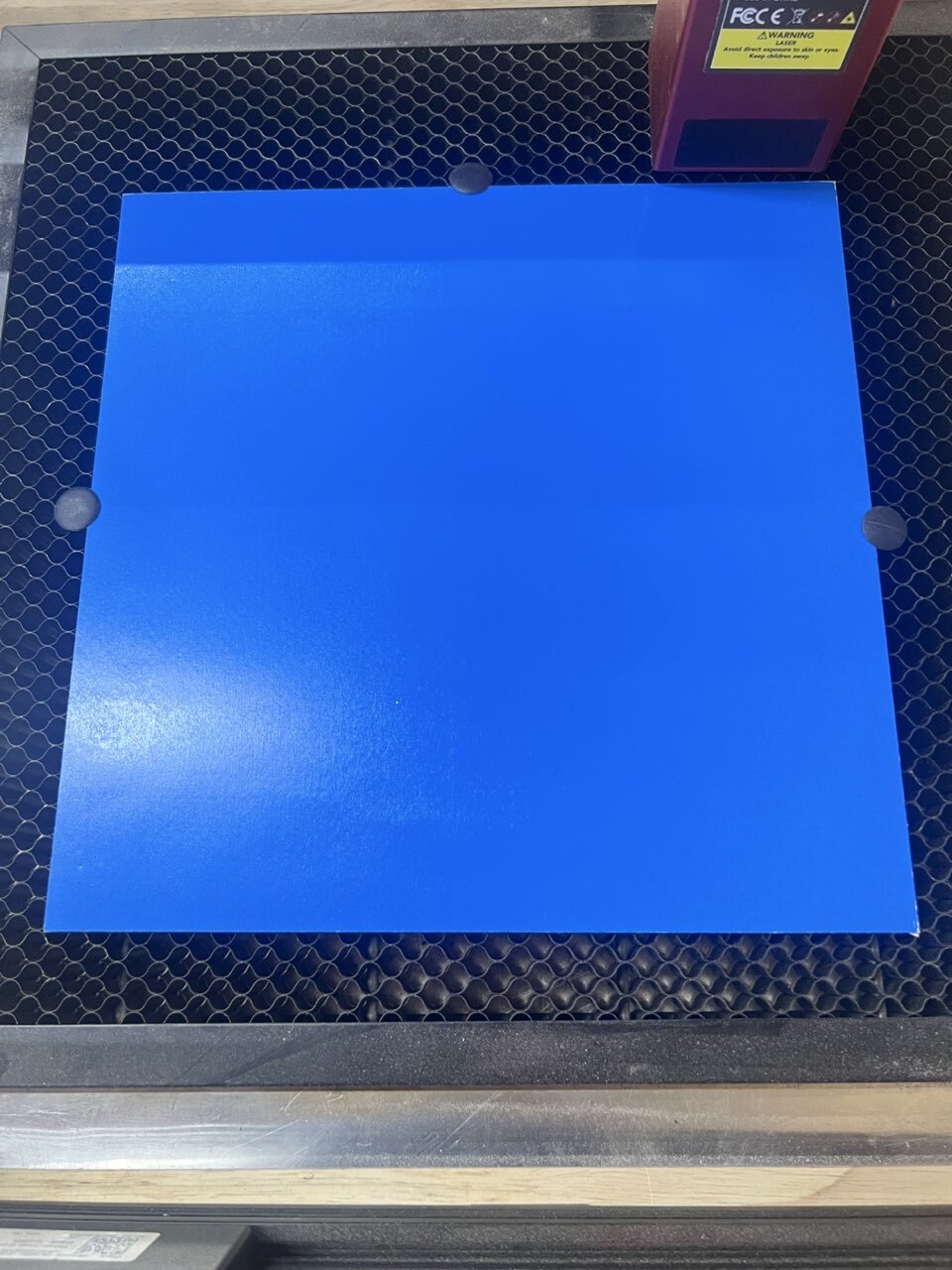

- Place the material to be carved on the honeycomb board and secure it with screws.
The TS2-40W machine uses manual focusing, and the focusing column on the laser head can be freely expanded to the appropriate focusing length
The TS2-20MAX machine uses manual focus. Use the focus block under the laser head to select the appropriate focal length for focus.
LightBurn

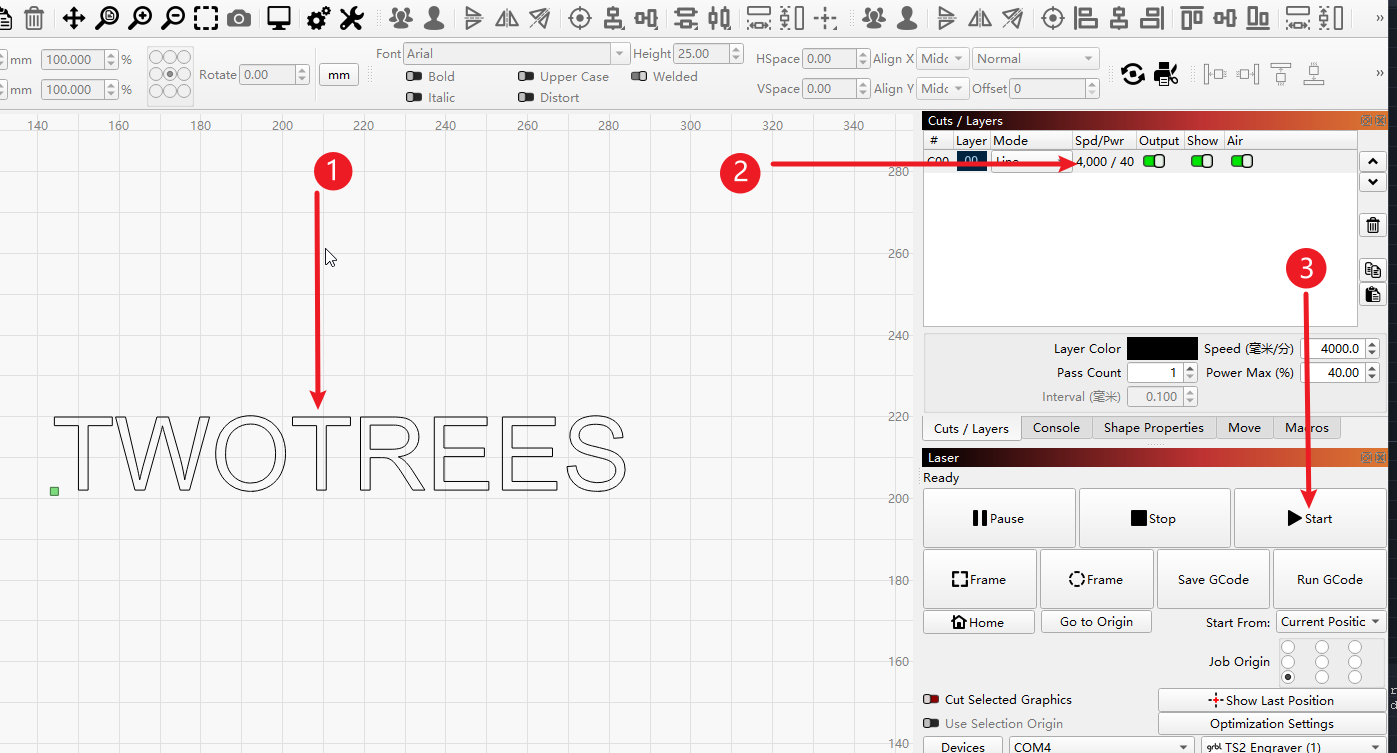

- 1.Set up the graphic file
- 2.Set the engraving speed and power of the used materials
- 3.Click to run the carving process.
LaserGRBL
Perform the operations according to the sequence numbers.

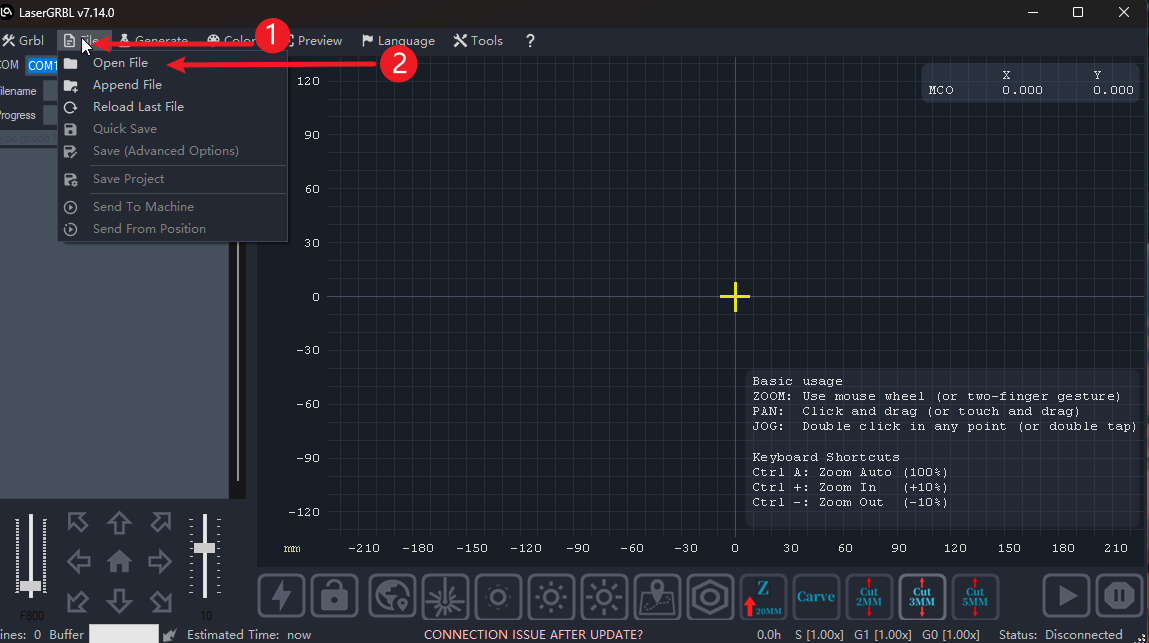

- 1.Click on the file
- 2.Click to open the file

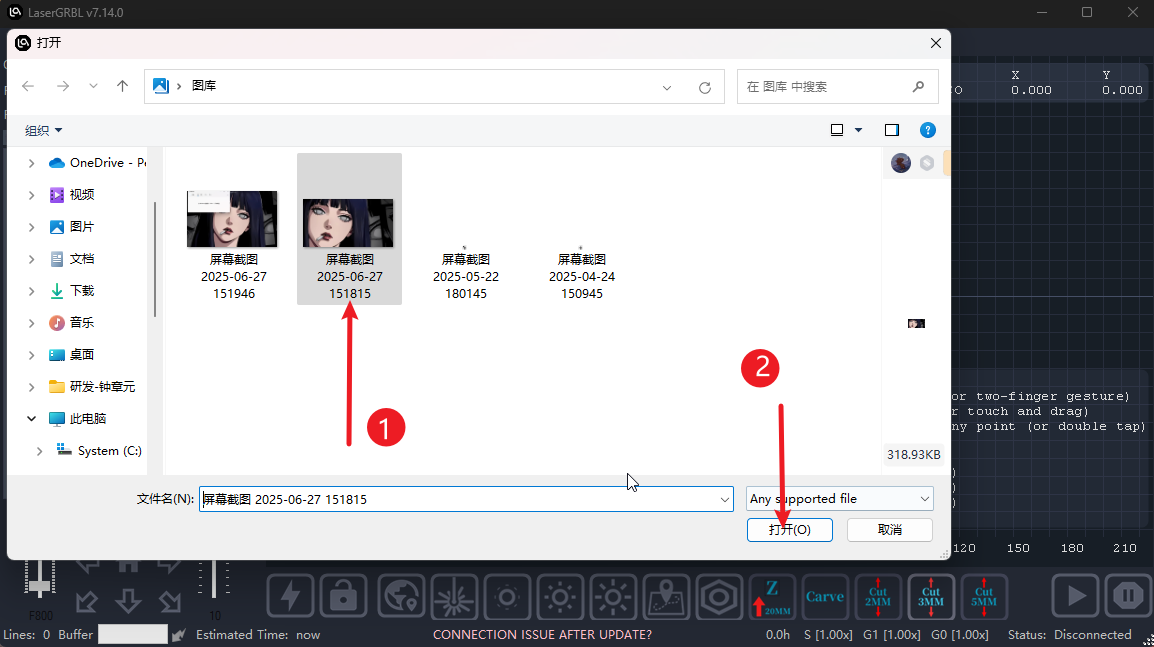

- 1.Select the file that needs to be engraved
- 2.Click to open

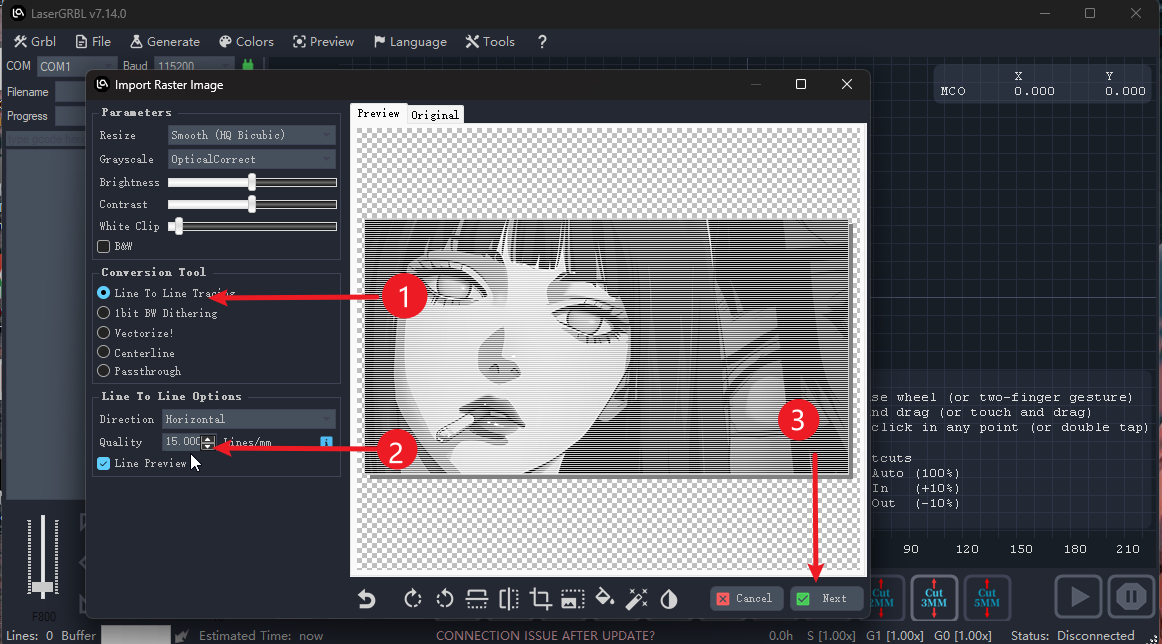

- 1.Set the mode to be used
- 2.Set the quality of the engraving (this value indicates how many lines are engraved within an interval of 1mm)
- 3.Click “Next”

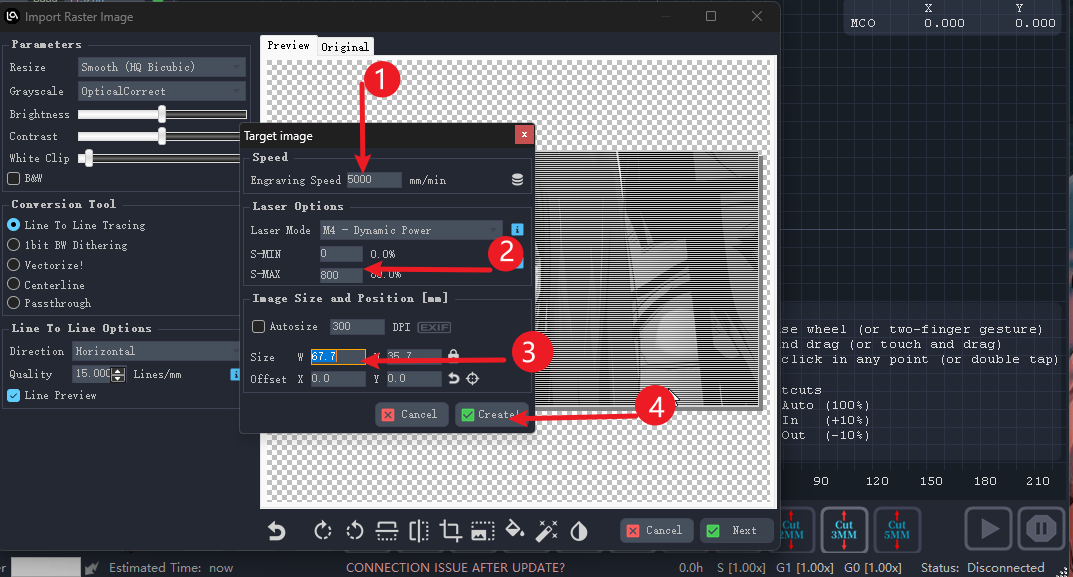

- 1.Set the speed of the carving
- 2.Set the power to be used (1000 represents 100% power)
- 3.Set the size of the image
- 4.Click “Finish” to complete.

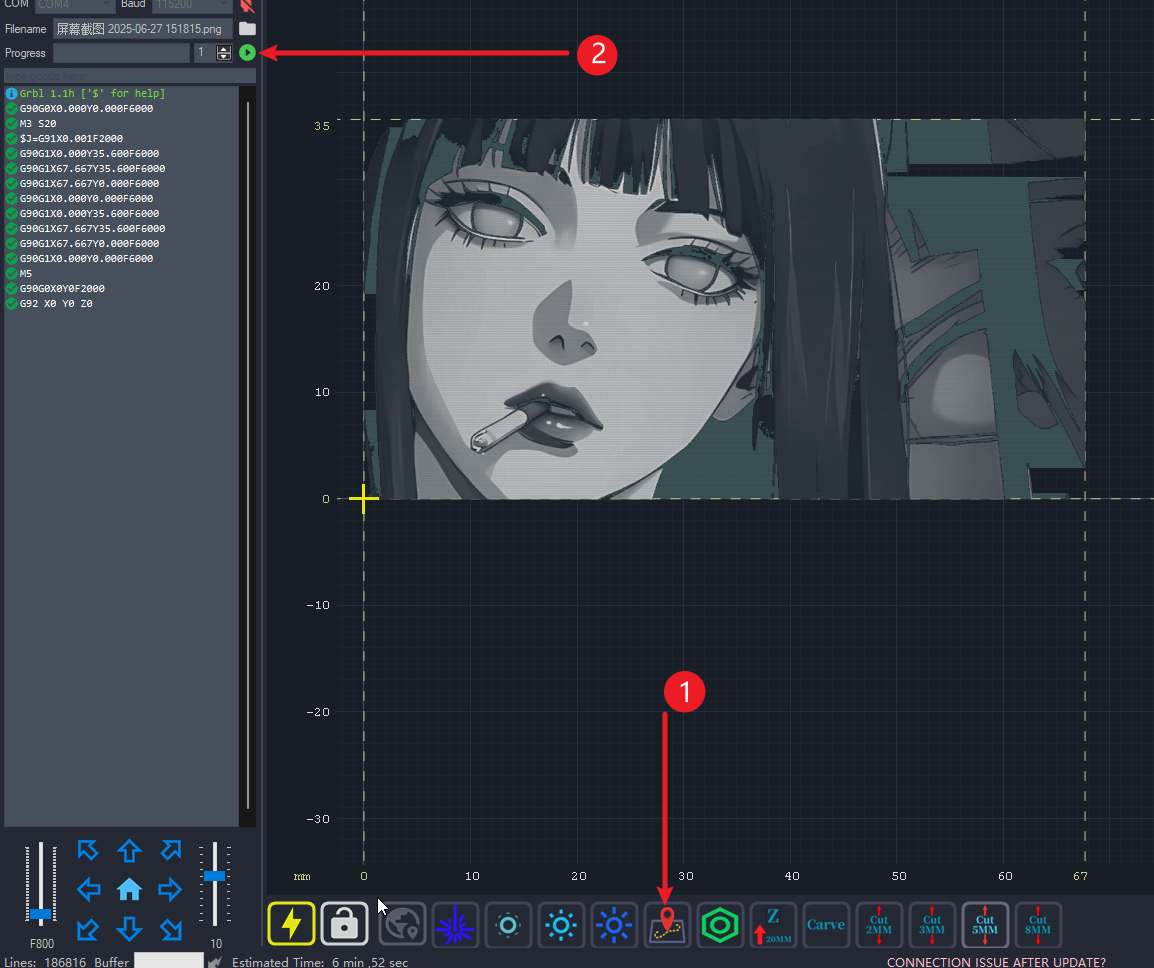

- 1.After setting up the graphic file, click to position the origin.
- 3.Click to run the carving process.
