¶ PC connection for engraving
-
- The TF card attached by the manufacturer.
- Search: CH340SER
-
- Open the LaserGRBL software on your computer
- The ”Tools” menu of the LaserGRBL software.
- Note: Install the driver unsuccessfully will cause the computer to fail to connect to the machine
。
¶ Focus adjustment

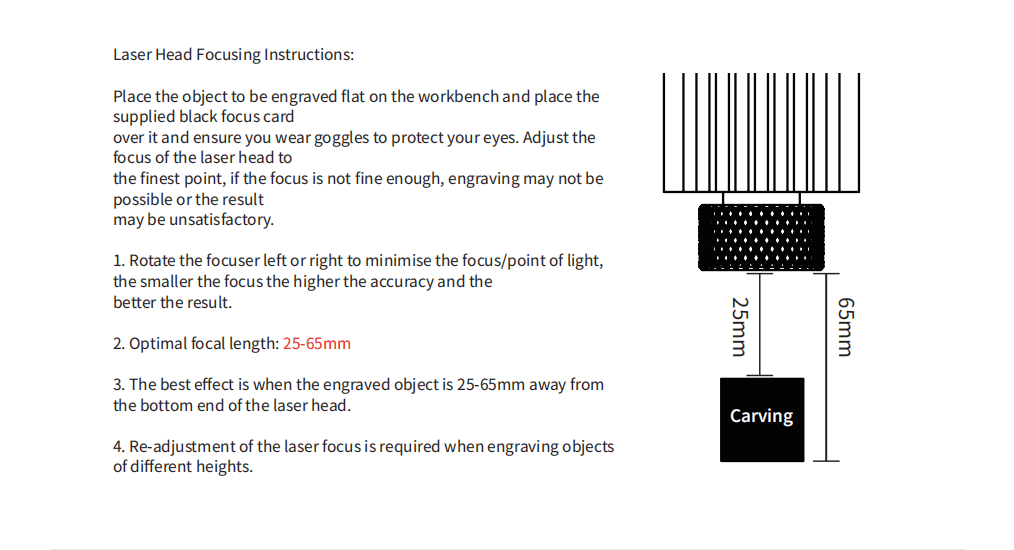

Focusing Tutorial
|
¶ Comparison before and after focusing

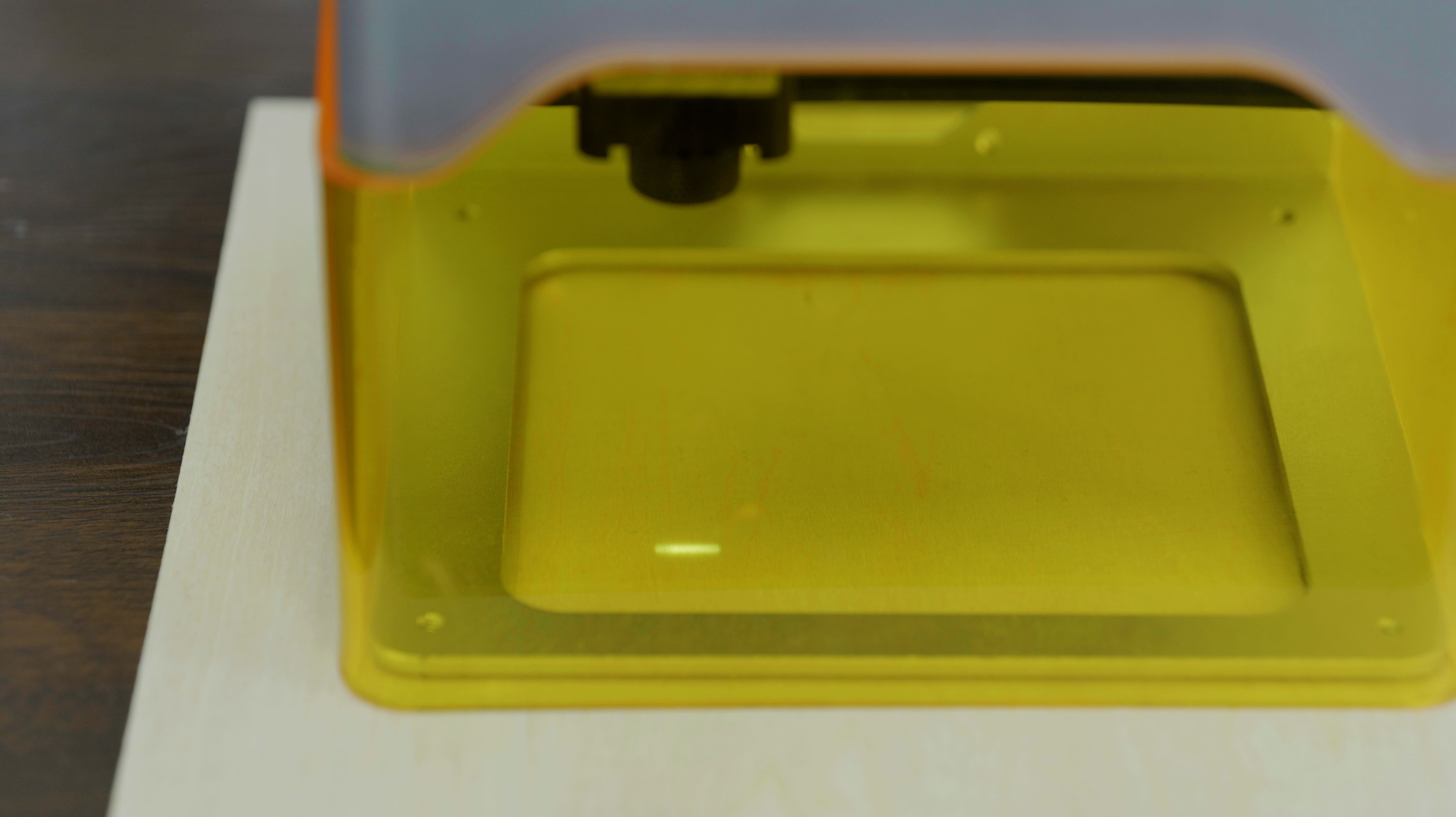

Out-of-focus state
|

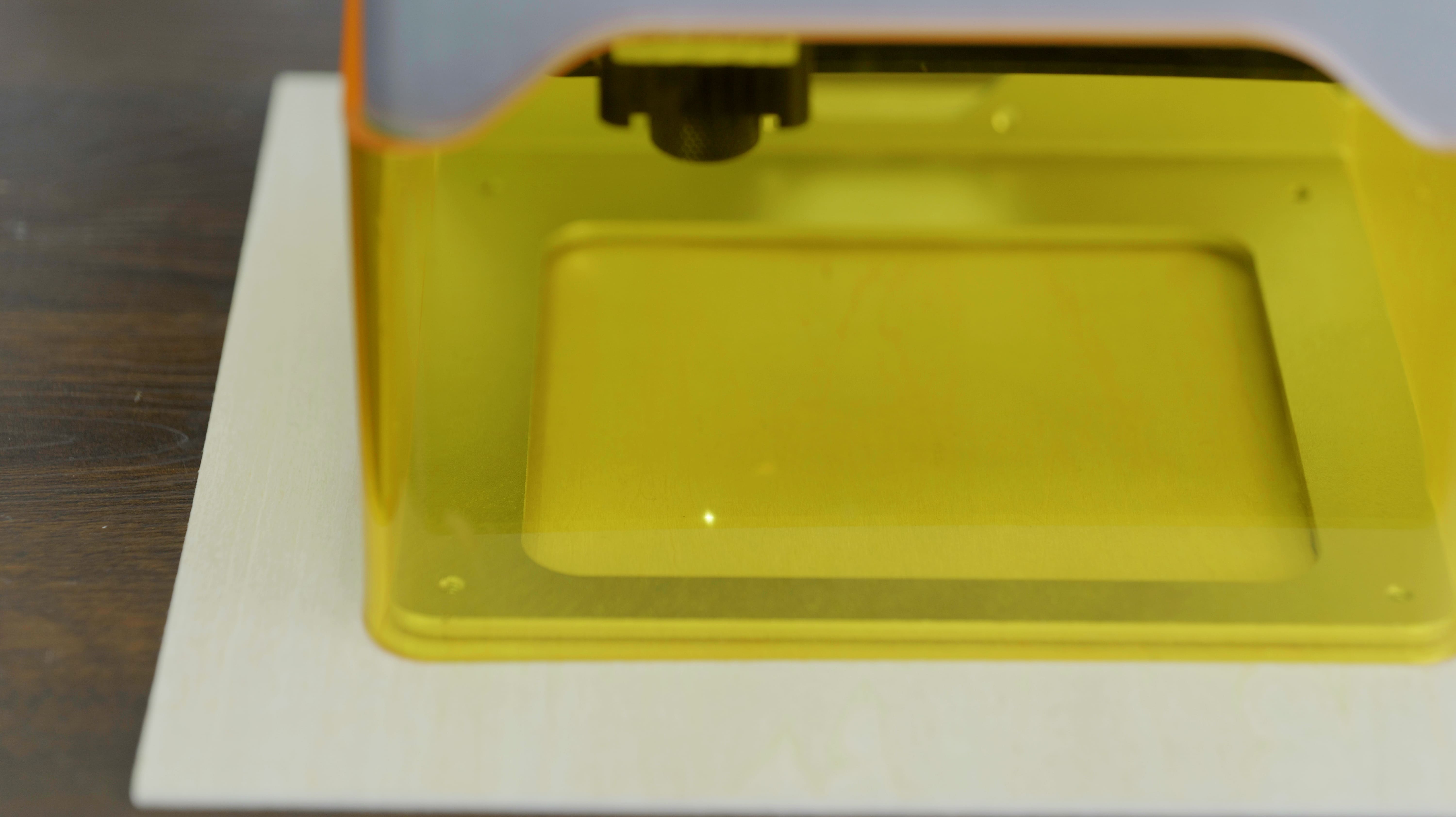

In focus state
|
¶ Import configuration carving
1.LaserGRBL：This software does not require importing configuration files. Once connected, it can be used directly.
- 1.Select the corresponding COM port
- 2.Set the baud rate to 11520
- 3.Click the link to proceed.
|
LightBurn
LightBurn Link tutorial
LightBurn Software Sculpting Tutorial
Step 1
Perform the operations according to the sequence numbers.
- 1.Select the corresponding COM port software and it will automatically connect to the machine.
- 2.Click on “Import Configuration for Device”
- 3.Click “Import”
|

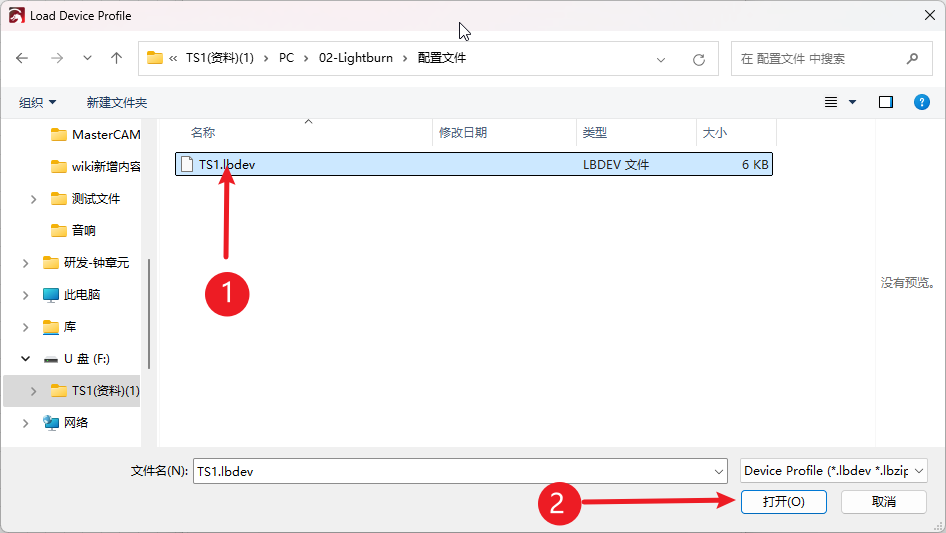

Step 2
Perform the operations according to the sequence numbers.
- 1.Select the appropriate configuration file
- 2.Click to open
|

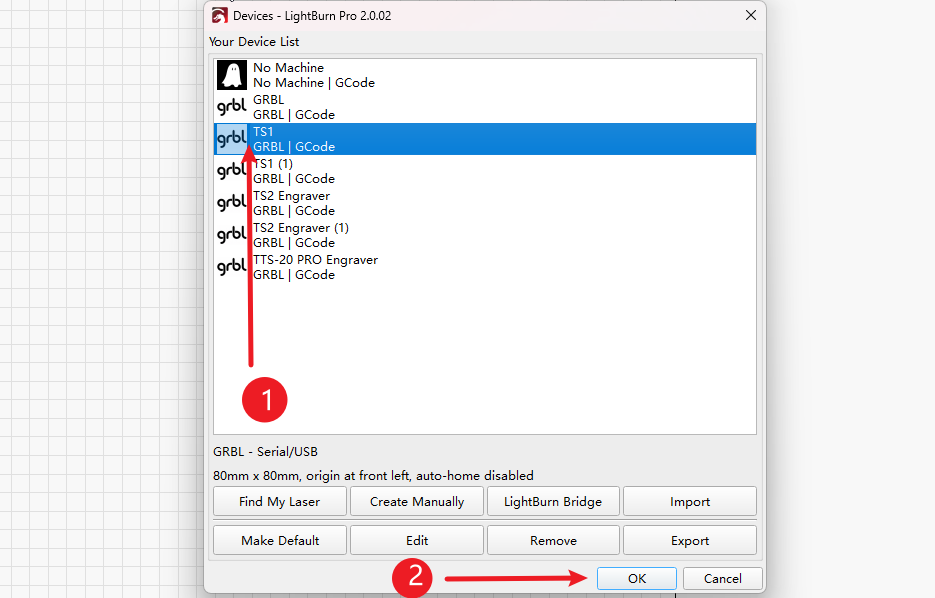

Step 3
Perform the operations according to the sequence numbers.
- 1.Click on the machine configuration after the import operation.
- 2.Click “OK” to apply
|
