This is the installation tutorial for machines of TTC6050 and above. Earlier models require the use of hose clamps. The difference can be seen at the end of this tutorial

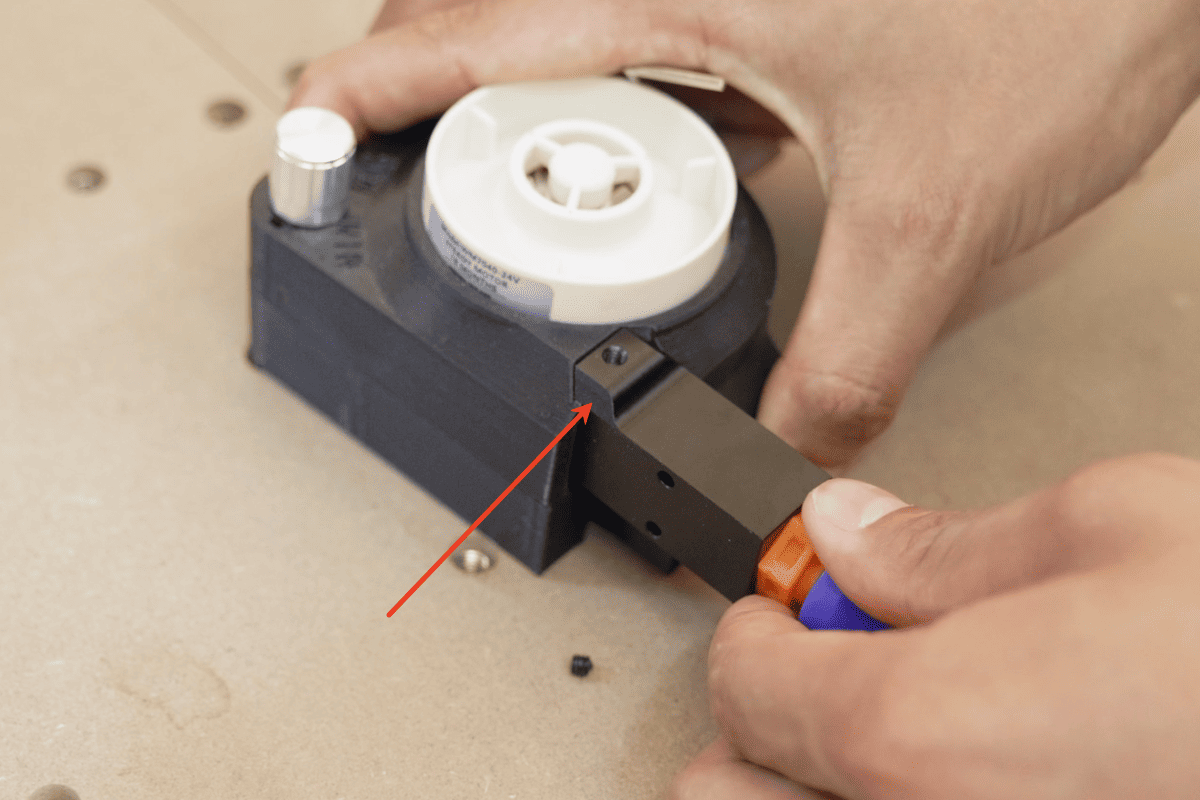

1.Align the air nozzle with the air outlet of the fan and install it

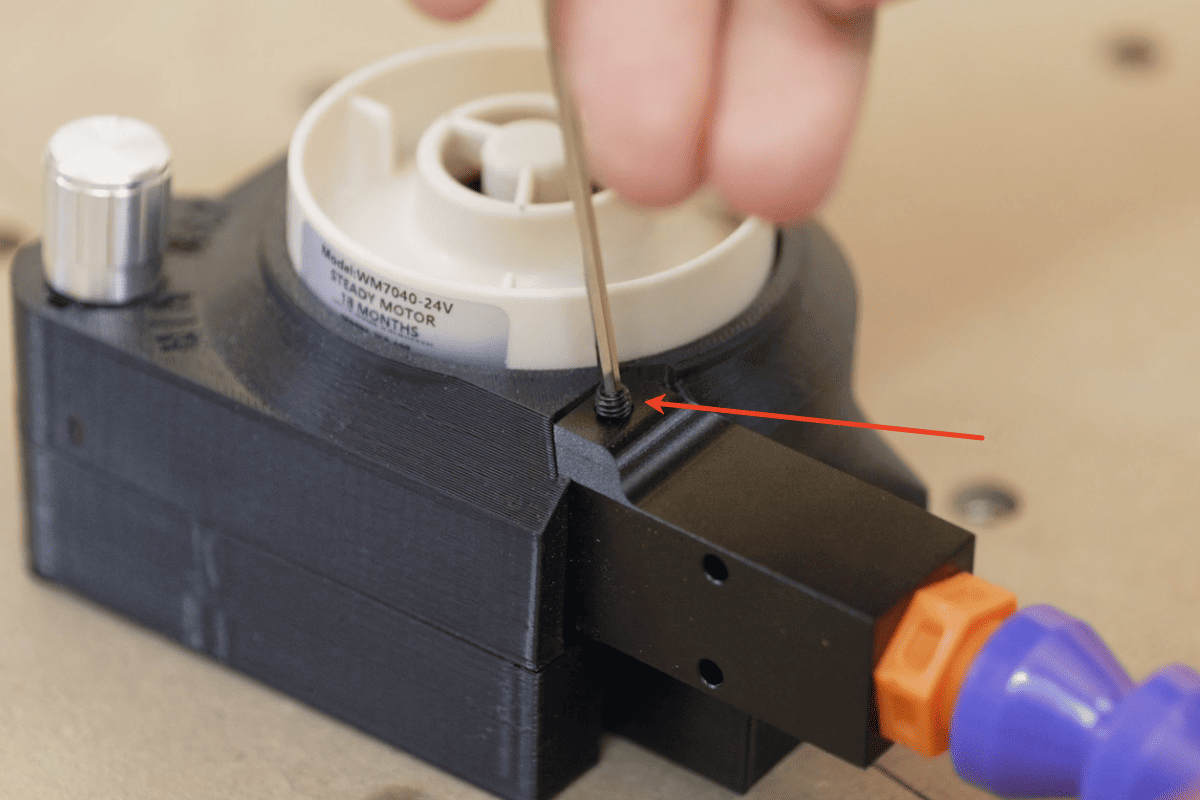

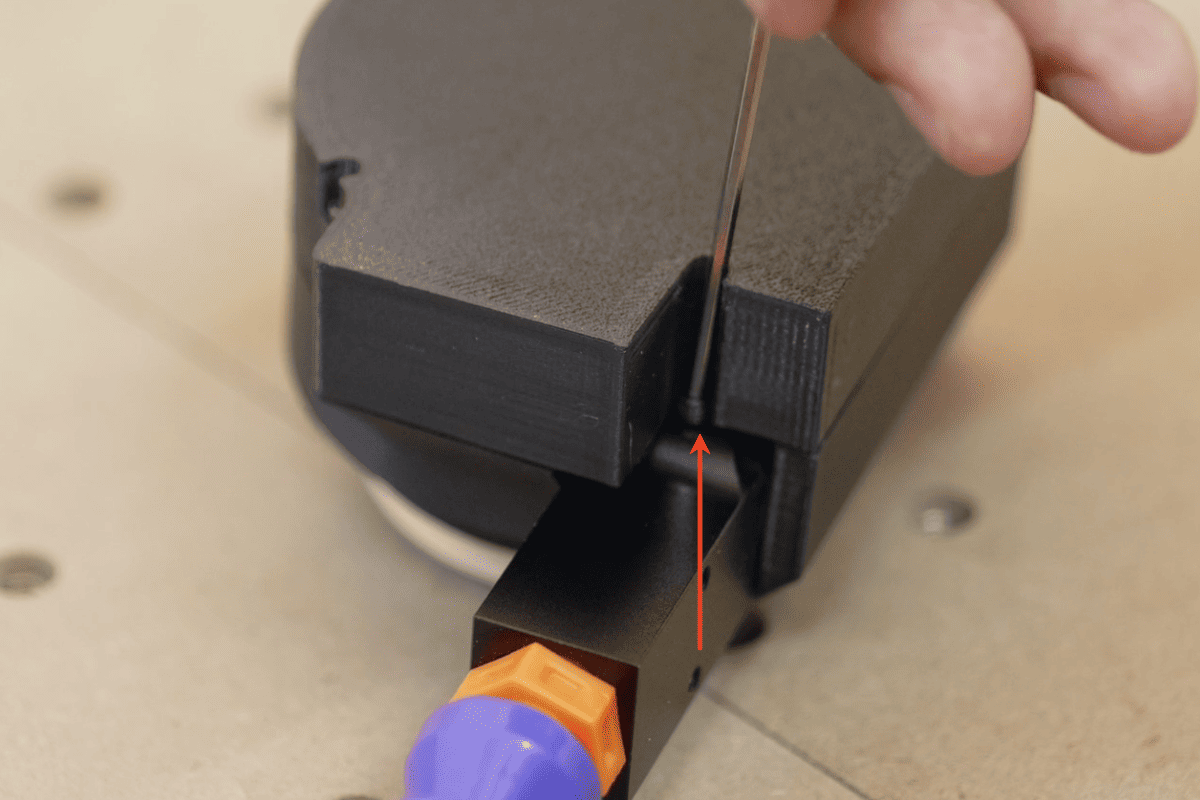

2.Fix the air nozzle with the machine screw

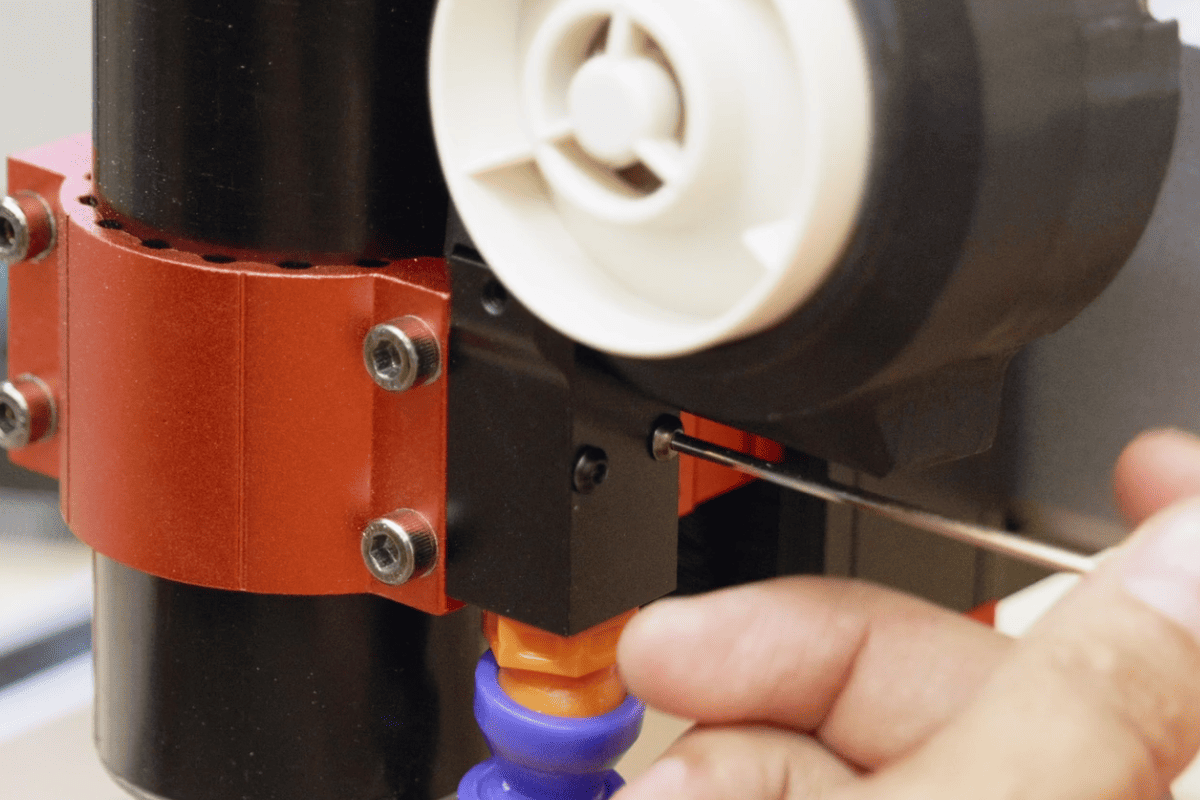

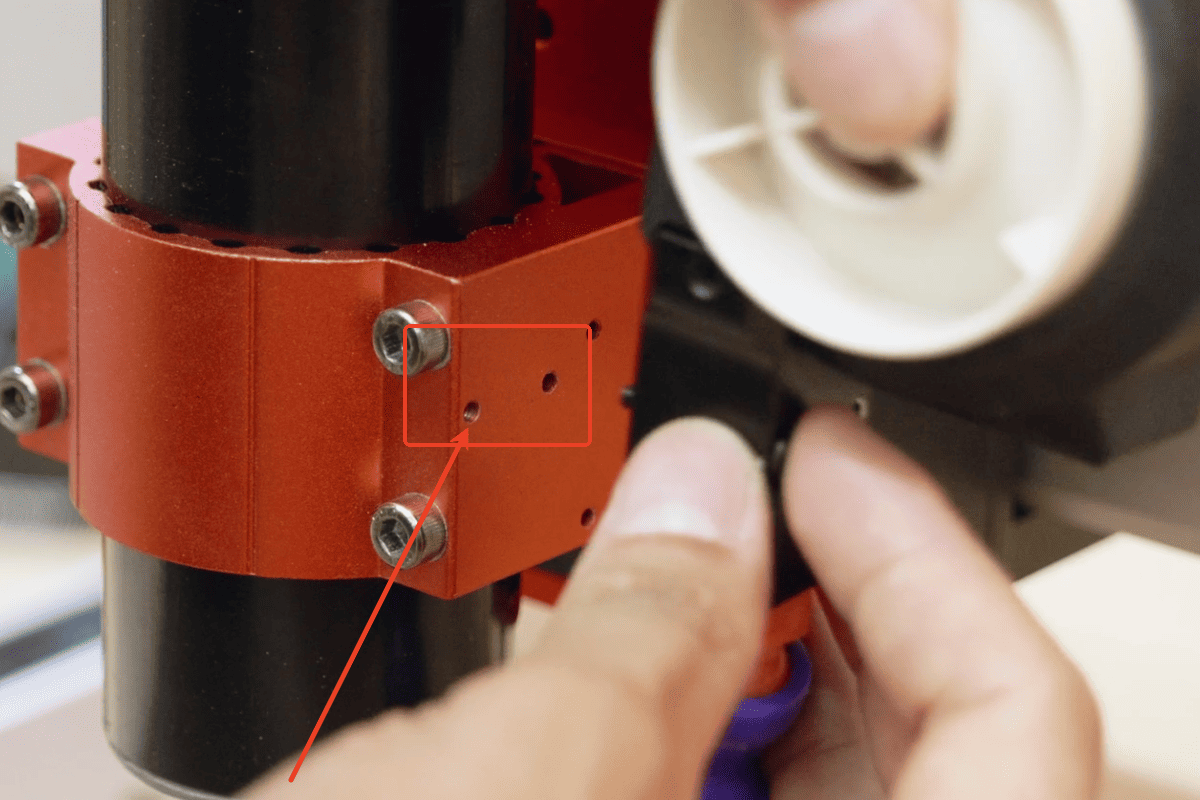

3.Install the air-cooled component on the hole position in the red frame on the side of the spindle fixture

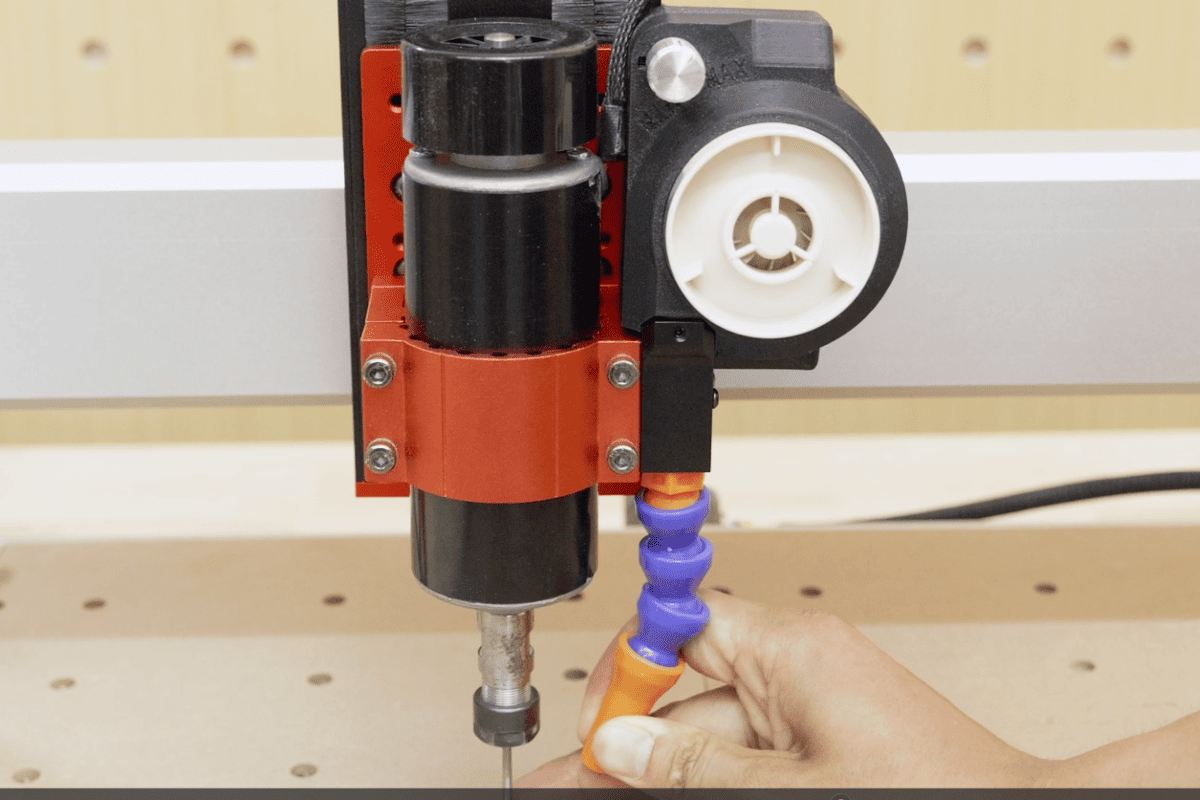

4.Manually adjust the air nozzle to align with the tip of the knife

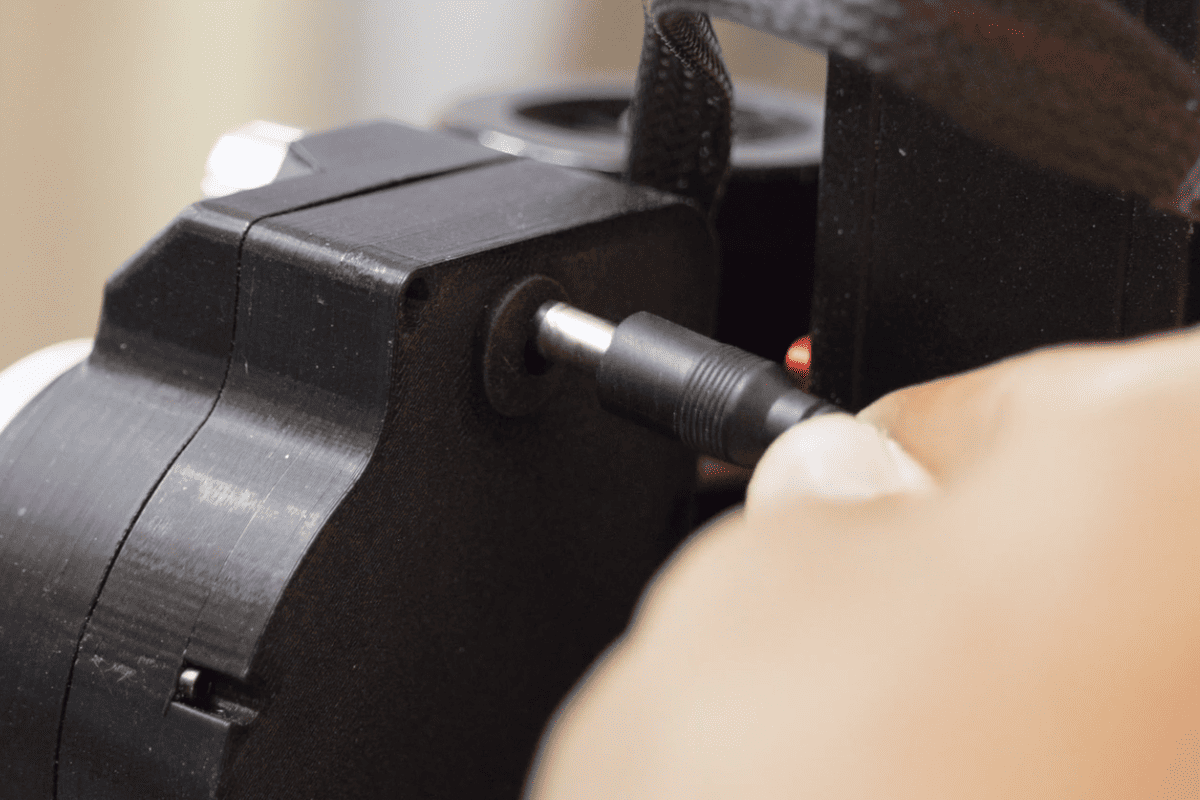

5.Connect the power cord to the interface at the back of the fan

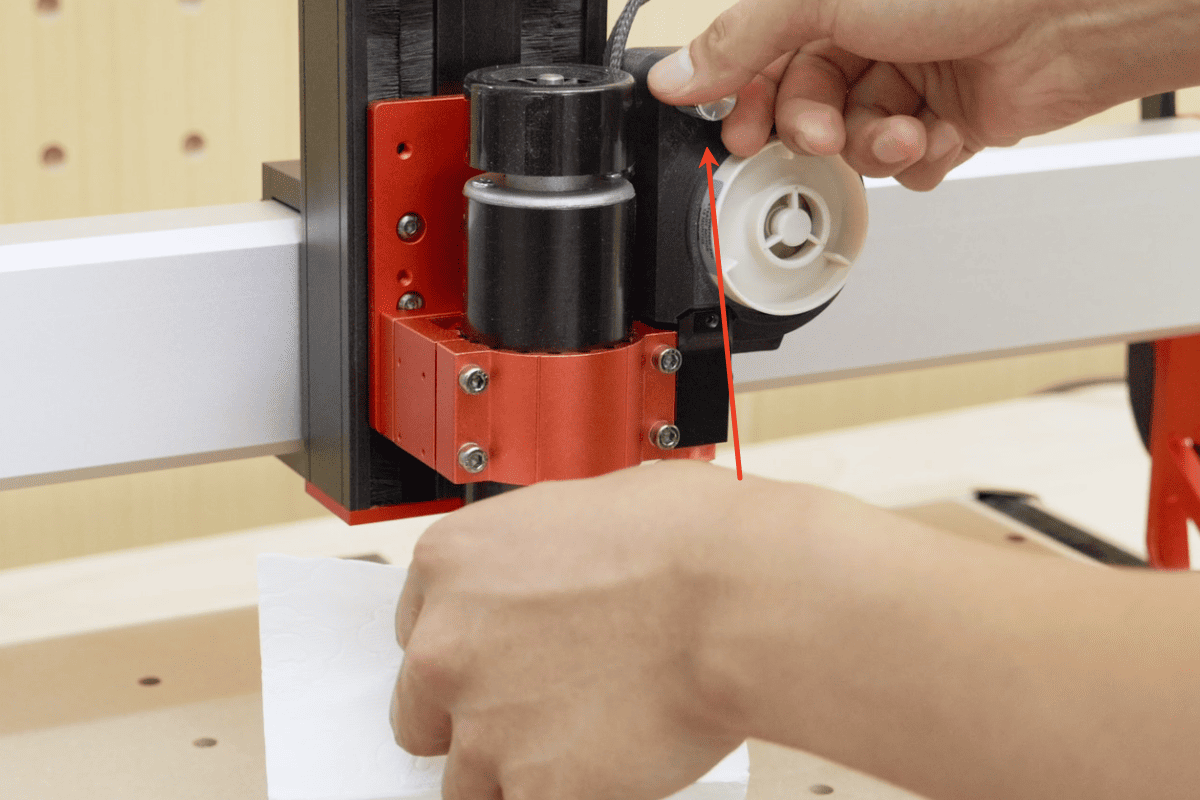

6.Just adjust the speed control knob in front of the fan to dissipate heat
Models such as TTC450 and TTC450Pro can be installed at the positions indicated by the hose clamps in the picture
