¶ Carving execution
¶ Setting the tool (This tutorial is used after the preparatory work is completed, to start the process of preparing for the carving)
1.Place the wire with a clip on the tool setting block onto the milling cutter, and connect the other end of the wire to the adapter board.
2.Operate the control screen to select the tool setting function.
3.Wait until the milling cutter has descended and completed the alignment process. Then click “Yes” on the screen, and proceed to execute the file for engraving.
¶ Method Two

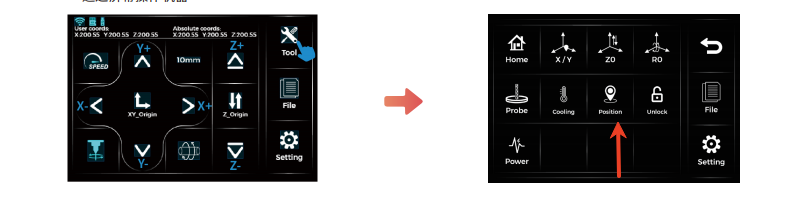

The spindle can be manually moved. After the cutting tool reaches the required working position and the tip is pressed against the material surface, click on the “Position” option in the operation panel’s tools to record this position as the origin. Start working from here. Then, click on “File” to perform the engraving task.
|
