¶ Preparation before use (This tutorial is used before performing the engraving task for the first time. Just follow the arrows.)

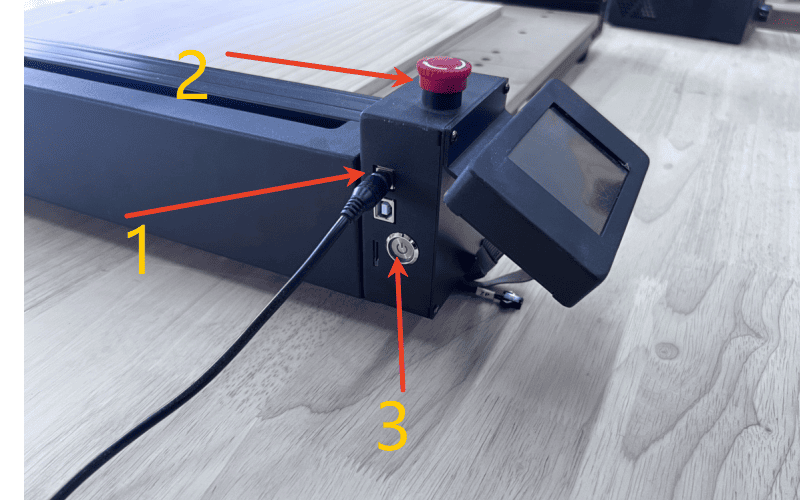

¶ Turn on the machine
1，Connect the power adapter to the machine and power it on
2，Check whether the emergency stop switch above the control box is in the open position (if it is closed, please open it).
3，Press the angel eye switch on the side of the control box to turn on the machine
|
¶ Prepare the documents
1，Back up the files in the TF card to the computer to prevent loss
|
2，Right-click the backed-up USB drive and select “Format” to clear the TF card
|
3，Open the backed-up folder again and find the test file
|
4，Find two test NC files with the suffix “Gcode” and copy them
|
5，Switch back to the USB drive again and save the two test files to the USB drive respectively
|

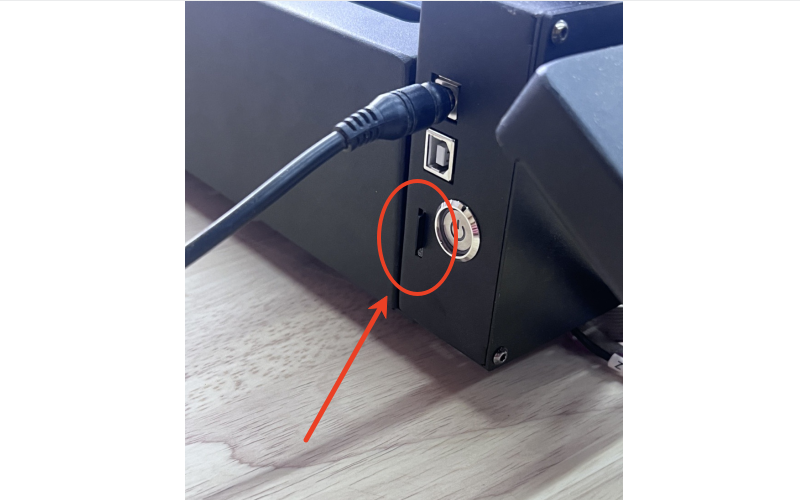

6，Pop out the TF card that has stored the test files and insert it into the card slot on the right side of the control box
|
¶ Fix the workpiece
1.First, screw the screws into the sheet metal and the butterfly nuts
|
2.Then press it onto the workpiece that needs to be engraved
|
¶ Install the milling cutter
1.将夹头放入螺母内，然后拧一部分在旋转轴上
2.Then, after placing the milling cutter into the chuck, use a wrench to tighten the nut
