This tutorial provides a detailed explanation of the standard process for performing the first engraving operation after the equipment is assembled. It is particularly suitable for novice users to learn step by step.
Driver program name: CH340SER.EXE
Where can you find this program?

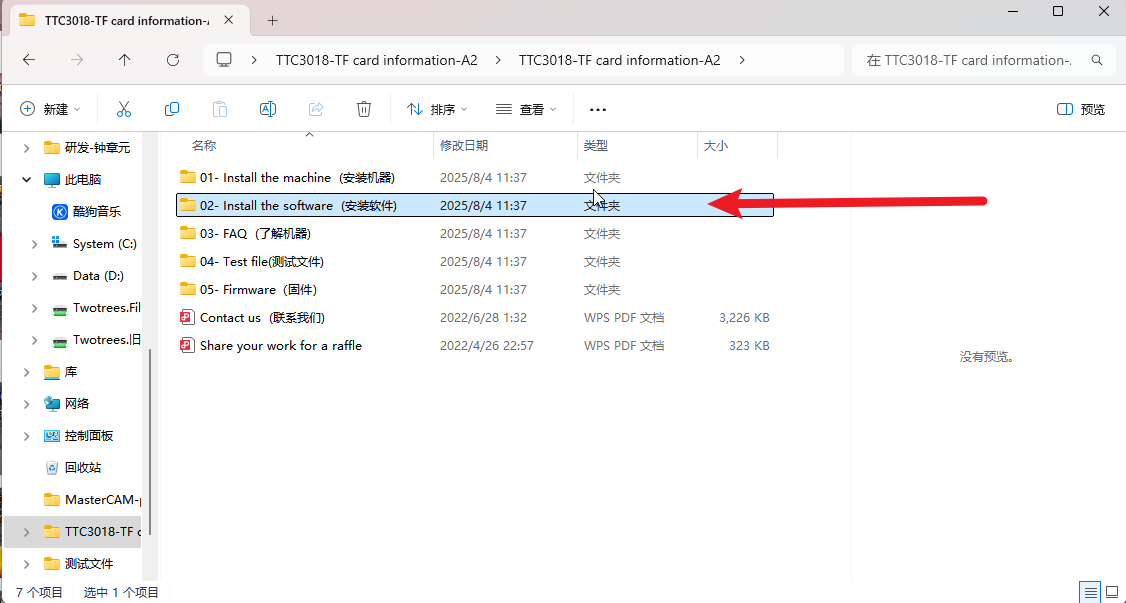

It is included on the manufacturer’s TF card.
Search on a browser: CH340SER or CH340 official website.
Note: Failure to install the driver program may result in the computer being unable to connect to the machine. The driver files for Windows and macOS are different.

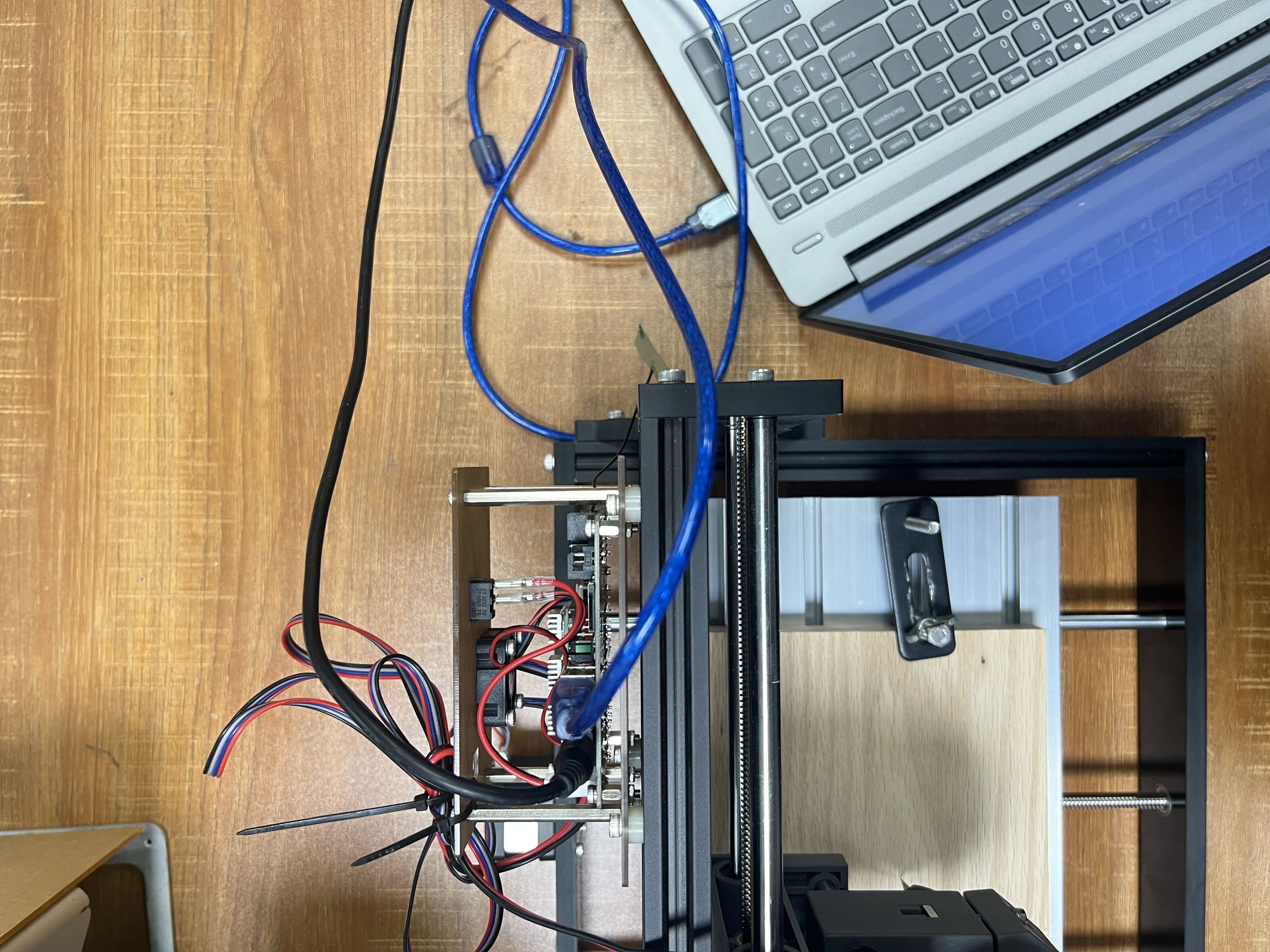

1.Connect the USB cable to the computer and the machine

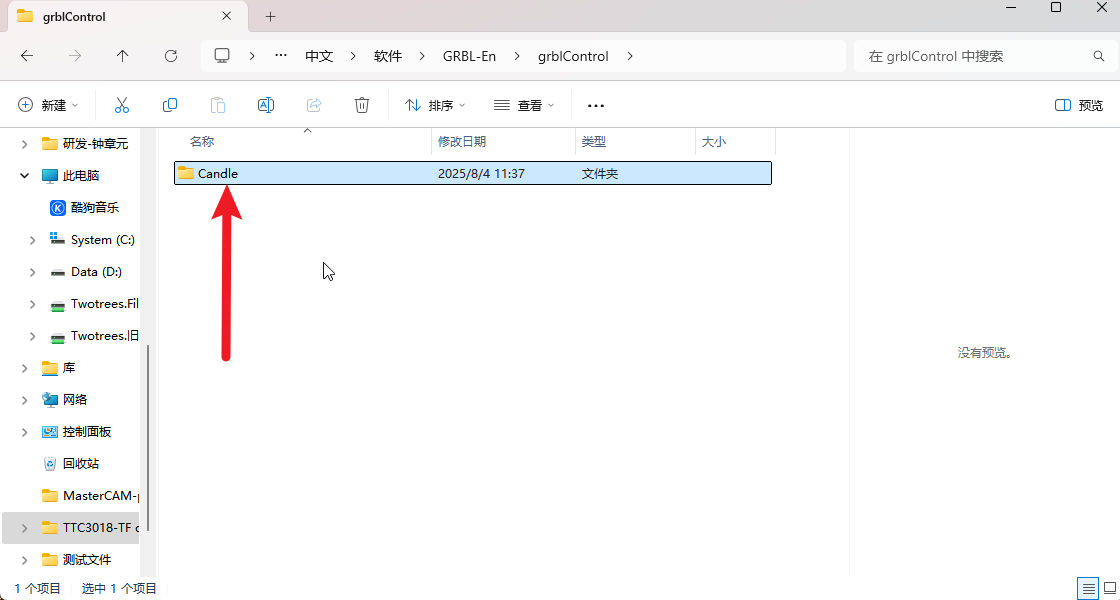

2.In the “candle” application, click on “Services” and then find “Settings”
3.After opening the settings, select the corresponding COM port and check if the baud rate is 115200. Then you can connect the machine and the software.

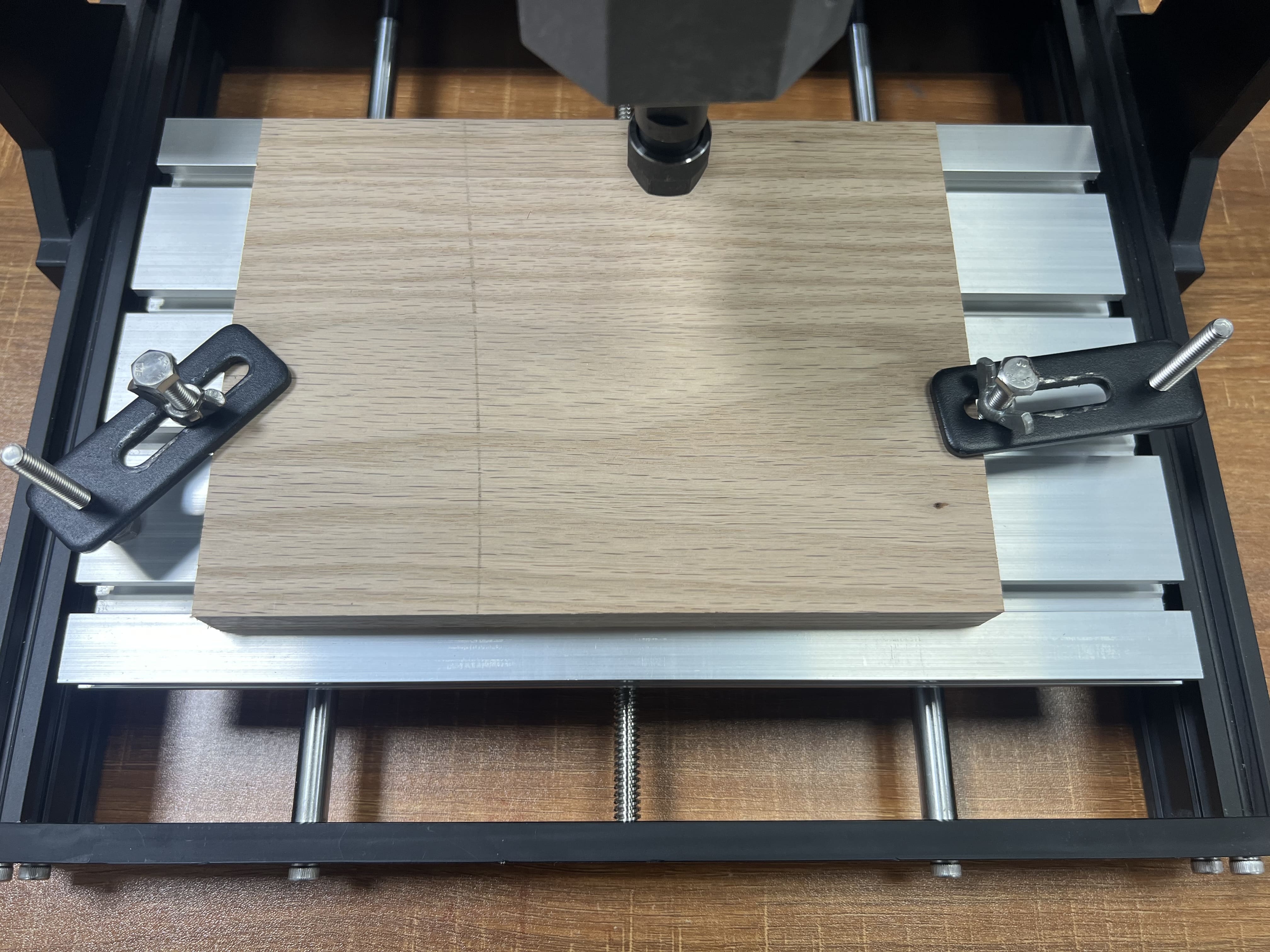

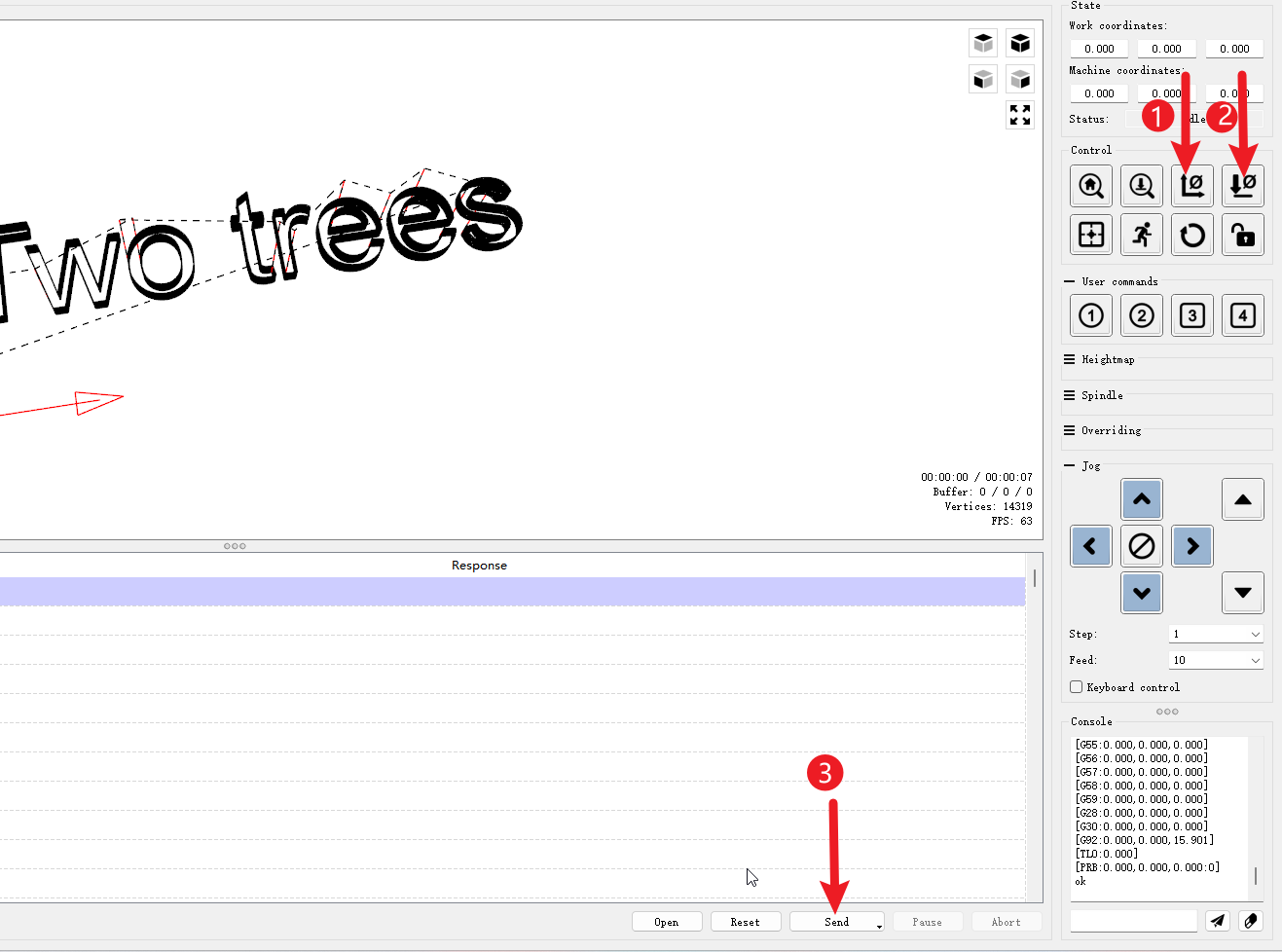

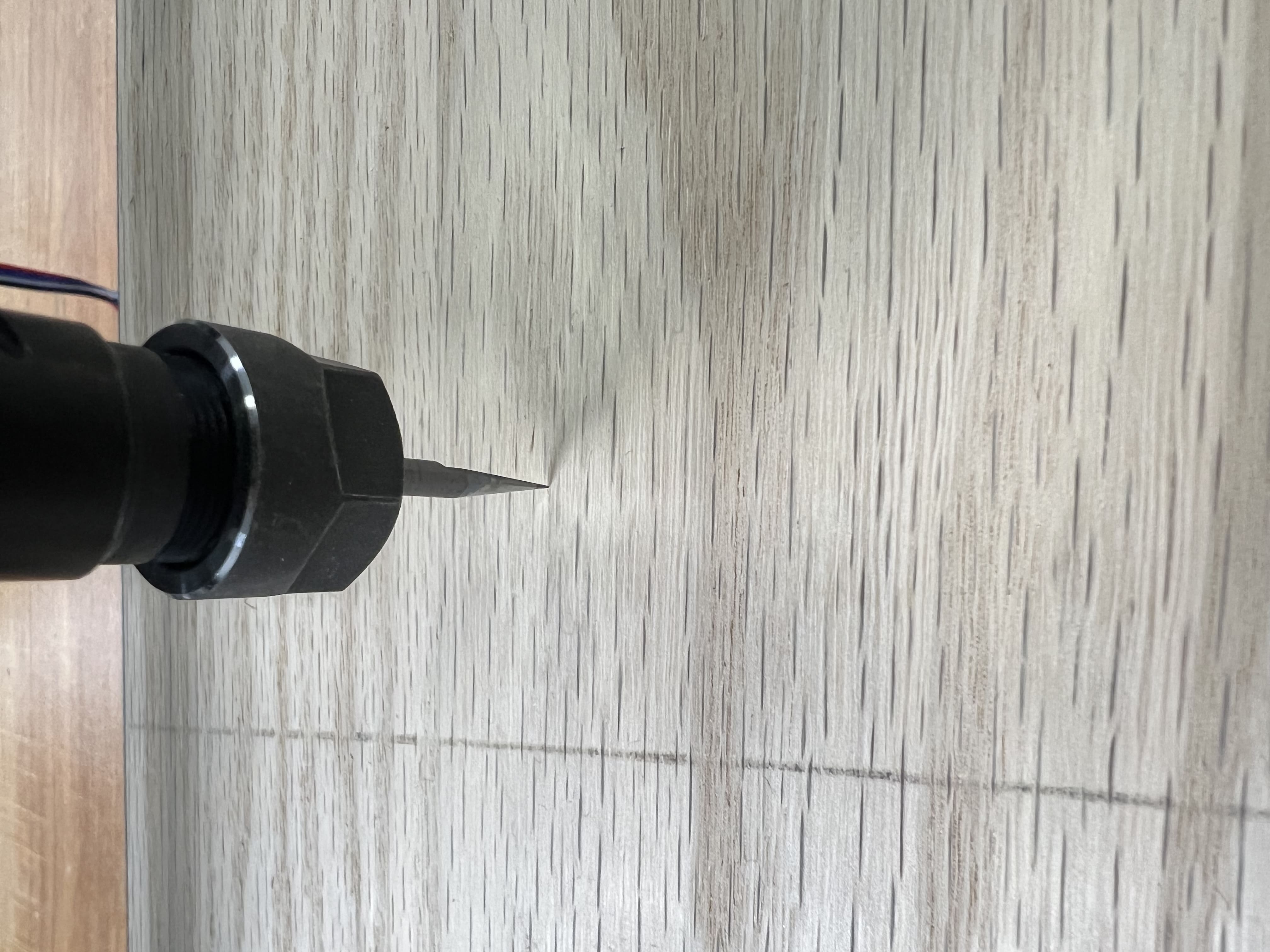

Move the knife tip until it touches the material surface. In the software, reset the XY-axis coordinates and the Z-axis height to zero. Then click “Send” to start the engraving.
